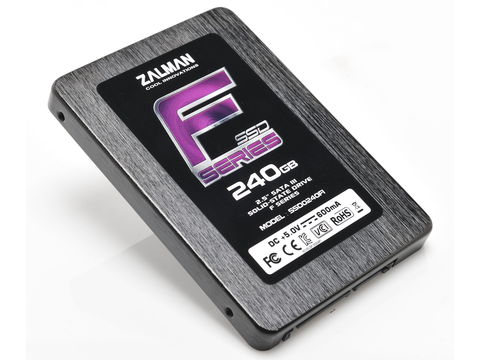

Zalman SSD-F1 Series 240GB review

A 2.5-inch SATA III Solid State Drive (SSD) quoting reads up to 560MB/s

TODO alt text


  • Impressive performance
  • 3.5-inch convertor in box


  • Migration software not in the box
  • Bit more expensive than some of the competition

No you haven't woken up in a strange parallel universe where everybody's making everybody else's products. And yes, the Zalman SSD-F1 Series 240GB is made by the same Zalman that makes all those fancy-looking CPU coolers, among other things.

In fact this actually isn't Zalman's first go at a solid state drive (SSD) range - it had two drive ranges out previously, the Zalman N series using a first generation SandForce controller and the S series using a JMicron chip.

Now it has a new family of 2.5-inch SSDs - the F1 Series - to enable it to play with the big boys without sand being kicked in its face. This new drive uses the SandForce SF2281 controller and SATA 6Gb/s interface, and should make for some interesting comparisons with drives that have been around since the launch of the latest range of SandForce controllers.

This 240GB drive is the current flagship of the range, quoting IOPS (4K random) read and write speeds of 45,000, sequential reads of up to 560MB/s and sequential writes of up to 530MB/s. There are also 60GB and 120GB capacities available, both with quoted IOPS (4K random) read/writes of 30,000.

Tech Specs

Product TypeSolid State Drive
Product FamilySSD-F1
Drive InterfaceSATA
Drive Width2.5"
Drive Interface StandardSATA/600
Brand NameZalman
Drive TypeInternal
Storage Capacity240 GB
Green CompliantYes
Green Compliance Certificate/AuthorityWEEE, RoHS
Maximum Read Transfer Rate560 MBps
Maximum Write Transfer Rate530 MBps
Height9.5 mm
Width70 mm
Depth100 mm
Product SeriesSSD-F1
ManufacturerZalman Tech Co., LTD
Product ModelSSD0240F1
Product NameSSD-F1 Series SSD0240F1 Solid State Drive
Manufacturer Part NumberSSD0240F1
Manufacturer Website Address
Weight (Approximate)76 g
