Intel DZ77GA-70K review

A definite improvement for Intel's mobo team, but still a little off the pace

TODO alt text

Our Verdict

Nowhere near as weak a board as we've seen from Intel in the past, but really struggles to achieve its Extreme enthusiast credentials.


  • Decent stock performance
  • Impressive Visual BIOS


  • Weak overclocking chops
  • Comparatively pricey

As part of the initial launch platform for Ivy Bridge we had high hopes for the Intel DZ77GA-70K motherboard, after all Intel's motherboard division has been really trying recently.

That said, you may not even know Intel has been creating and selling its own line of motherboards for ages.

You probably wont have seen many of them in the hallowed pages of TechRadar, and that's because generally they're a bit pup.

Accompanying every Intel CPU launch of the last few years has been another weak Intel motherboard limping along to the party hoping some of the CPU hero-dust will fall on it.

With the last release though things were different.

The LGA 2011-sporting Intel DX79SI motherboard was actually a rather more impressive beast. And we have been reliably informed by Intel that the DZ77GA-70K is another such improvement.

It's Intel's top chipset, so you'd think if anyone could do it justice then it should be the chip-manufacturers themselves. After all the Intel Core i7 3570K needs a good home, right?

And with the full complement of PCIe 3.0 support along with multi-GPU lovin' from both AMD and Nvidia, and Intel's own native SATA and USB 3.0 support too it's got a lot going for it.

Vital stats
Socket - Intel LGA 1155
Chipset - Intel Z77
Graphics support - 2x PCIe 3.0 x16, Nvidia SLI and AMD CrossFireX
Memory - Dual-channel DDR3
High speed interfaces - 8x USB 3.0, 4x SATA 6Gbps


At stock speeds the Intel DZ77GA-70K is a decent board, keeping up with the likes of the ASRock Fatal1ty Z77 Professional.

Sadly, it doesn't offer as solid performance when it comes to overclocking.

We had settings from Intel to hit 4.8GHz, but even with the Corsair H100 it wouldn't even boot. For an enthusiast board to offer such limited overclocking is unfortunate.

CPU rendering performance

Intel DZ77GA 70K benchmarks

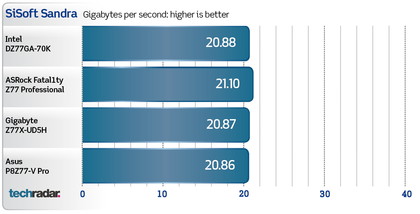

Memory bandwidth performance

Intel DZ77GA 70K benchmarks

Overclocking performance

Intel DZ77GA 70K benchmarks


Tech Specs

Product TypeDesktop Motherboard
Chipset ManufacturerIntel
Chipset ModelZ77 Express
Multi GPU SupportedSLI, CrossFireX
Onboard VideoCPU Dependent Video
Number of PCI Express x16 Slots2
Memory TechnologyDDR3 SDRAM
Processor SocketSocket H2 LGA-1155
Brand NameIntel
Form FactorATX
Processor SupportedCore i5, Core i7, Core i3, Pentium, Celeron, Xeon
Total Processor Supported1
Maximum Memory32 GB
Green CompliantYes
Green Compliance Certificate/AuthorityENERGY STAR 5.0, RoHS
64-bit ProcessingYes
Number of Memory Slots4
Number of PCI Slots2
Graphics Controller ManufacturerIntel
Audio Channels7.1
Gigabit EthernetYes
Number of SATA Interfaces8
RAID SupportedYes
Number of Total Expansion Slots7
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Total Number of USB Ports8
Number of USB 3.0 Ports4
Total Number of FireWire/i.LINK Ports1
PS/2 PortYes
Number of PS/2 Ports1
Total Number of Onboard USB Ports10
Number of Onboard USB 2.0 Ports6
Total Number of Onboard FireWire/i.LINK Ports1
PCI Express StandardPCI Express 3.0, PCI Express 2.0
Total Number of PCI Express Slots5
Memory Form FactorDIMM
Number of eSATA Ports1
Processor TechnologyTurbo Boost Technology, Hyper-Threading Technology, Extended Memory 64 Technology, Smart Response Technology
Width294.6 mm
Depth243.8 mm
ManufacturerIntel Corporation
Product ModelDZ77GA-70K
Product NameExtreme DZ77GA-70K Desktop Motherboard
Package TypeBulk
Product LineExtreme
Controller TypeSerial ATA/600, Serial ATA/300
Manufacturer Part NumberBLKDZ77GA70K
Manufacturer Website Address
Marketing Information

Best in a series of Intel® Desktop Boards optimized for the Intel® -K family of processors, the Intel® Desktop Board DZ77GA-70K sets a new standard when it comes to performance that gamers, overclockers, digital media enthusiasts, and ultimate multi-taskers need most. In combination with the new Intel® Visual BIOS, the Intel® Desktop Board DZ77GA-70K provides breakaway performance and flexibility. The new Intel® Visual BIOS offers graphical interface and animated controls, which allow you to configure settings faster and take full advantage of your Intel® -K processors.

Packaged Quantity10
Package Contents
  • Extreme DZ77GA-70K Desktop Motherboard
  • 10 x Bluetooth and 802.11 g/n Wireless USB Module
  • 10 x Configuration Label
  • 10 x DVD, Express Installer
  • 10 x I/O Shield
  • 10 x Integration Guide (Poster)
  • 10 x SLI Bridge Connector (2-way)
Limited Warranty3 Year
