Sapphire Radeon HD 7950 OverClock Edition review

The best graphics card on the market right now

TODO alt text

The benchmarks don't lie and show the Sapphire Radeon HD 7950 OverClock edition is only a fraction behind the vanilla Radeon HD 7970.

Thanks to the impressive overclocking potential within the Sapphire card, and the AMD Tahiti core in general, you can easily push the OverClock edition to the same performance levels as the HD 7970.

All of these benchmarks were run at 2560x1600, with the overclocking results taken at the relevant card's maximum achieved overclock.

There's little between them at the very top end of the OC tree.

DirectX 11 tessellation performance

Sapphire radeon hd 7950 oc ed

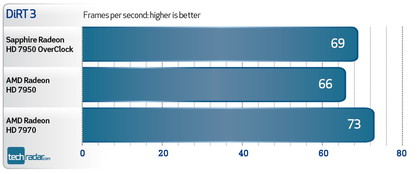

DirectX 11 gaming performance

Sapphire radeon hd 7950 oc ed

Sapphire radeon hd 7950 oc ed

Overclocking performance

Sapphire radeon hd 7950 oc ed

Sapphire radeon hd 7950 oc ed

Sapphire radeon hd 7950 oc ed

Tech Specs

Product TypeGraphic Card
Chipset ManufacturerAMD
Chipset ModelHD 7950
Chipset LineRadeon
Chipset SeriesHD 7000
Maximum Resolution2560 x 1600
Brand NameSapphire
Standard Memory3 GB
Host InterfacePCI Express 3.0 x16
HDCP SupportedYes
Bus Width384 bit
Multi-GPU TechnologyCrossFireX
RAMDAC Speed400 MHz
Digital SignalYes
Dual Link DVI SupportedYes
Number of DisplayPort Outputs2
Number of DVI Outputs1
Number of HDMI Outputs1
Height115 mm
Cooler TypeFan Cooler
Memory TechnologyGDDR5 SDRAM
Form FactorPlug-in Card
Length275 mm
ManufacturerSapphire, Inc
Memory Speed5000 MHz
Product NameRadeon HD 7950 OC Edition Graphic Card
Package TypeRetail
Manufacturer Part Number11196-02-40G
Manufacturer Website Address
Marketing Information

The SAPPHIRE HD 7950 OC Edition, which is factory overclocked to 900Mhz and features SAPPHIRE's new dual-extractor technology - Dual-X - a highly efficient multi-heatpipe cooler with dual fans providing quiet and very cool operation during normal operating conditions, and superb cooling performance even under extreme load.
For enthusiasts wishing to maximise performance, a new version of the SAPPHIRE overclocking tool, TriXX supporting this latest generation of technology is available free to download from the SAPPHIRE website. TriXX allows tuning of GPU voltage as well as core and memory clocks, whilst continuously displaying temperature. Manual control of fan speed is supported, as well as user created fan profiles and the ability to save up to four different performance settings. Both of the SAPPHIRE HD 7950 models have a dual BIOS, allowing for further experimentation by the enthusiast. On the OC edition, the second BIOS is pre-programmed to allow a higher maximum overclock and more aggressive fan profile.

Package Contents
  • Radeon HD 7950 OC Edition Graphic Card
  • CrossFire Bridge Interconnect Cable
  • DVI to VGA Adapter
  • Mini-DP to DP Cable
  • 2 x 6 PIN to 4 PIN Power Cable
  • HDMI to SL-DVI Adapter
  • HDMI Cable
  • CD
Limited Warranty2 Year
Thickness42 mm
API SupportedDirectX 11.1, OpenCL, DirectCompute 11, OpenGL 4.2
