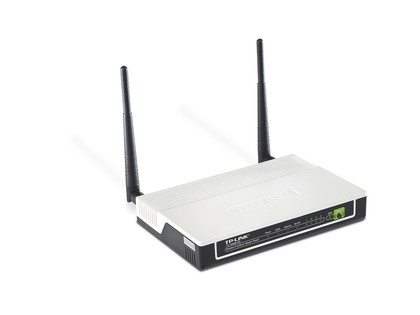

TP-Link TD-W8961N 300Mbps Wireless N ADSL2+ Modem Router review

Bargain basement networking with performance to match

TP Link td w8961nd

Primarily the TD-W8961ND has to be a good ADSL2+ modem router, and it at least manages that in two parts.

First is a set-up wizard that tries to help configure the modem router for a long list of UK ISPs. The second is good broadband performance and, after fighting with the configuration, it matched our standard ADSL connection downstream and offered an enhanced upstream speed.

Less impressive is the wireless performance.

It uses dual antennas for two spatial streams and claims to be 300Mbps, though performance is unlikely to go beyond 130/144Mbps. To do that the router would need to use 40MHz channels, which is unlikely except in Wi-Fi free areas.

Performance even in the same room was somewhat dismal and erratic, peaking around 1.9MB/s and averaging a very poor 391KB/s.

This doesn't get any better with distance and, as we'd imagine this is the primary way people will be connecting to the modem router, it's a huge turn off for the TD-W8961ND.

Equally unattractive is the web-based interface.

In its defence it covers a lot of complex options and features, but that can't excuse a sluggish response and a bizarre half-finished look to the page design.

This does cover one positive area of the ADSL2+ modem router in that there are a number of advanced feature hiding inside, such as port binding for specific services, wireless bridge options, Annex M to double upstream rates and full QOS abilities.

It feels like a rushed product and at the time of writing the latest firmware dated 17/6/2010 lists one of its key updates as "Fix the low rate of wireless connection."

Which doesn't fill us full of confidence.

We liked:

It has a no-nonsense design that even comes with a power button. It knows it's a budget modem router and tries to play to that strength offering some ease-of-use features for novice users, but still offers a raft of more advanced options.

We disliked:

Wireless performance was something of a disaster and taints the main way you'll be using this router. It's bad enough that it could be performing worse than your broadband connection.

It doesn't help that the web-based interface has an unfriendly look, is slow to use and despite its best effort to be easy to use still baffles with a range of technical features that most will not want.

Tech Specs

Product TypeModem/Wireless Router
Broadband Transmission TechnologyADSL2+
Wireless LAN StandardIEEE 802.11n
ISM BandYes
UNII BandNo
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports4
Total Number of Antennas2
Wireless Transmission Speed300 Mbps
Brand NameTP-LINK
Form FactorDesktop
ISM Maximum Frequency2.48 GHz
Height27.9 mm
Width175.3 mm
Depth119.4 mm
ManufacturerTP-LINK Technologies Co., Ltd
Product ModelTD-W8961ND
Product NameTD-W8961ND Wireless N ADSL2+ Modem Router
Manufacturer Part NumberTD-W8961ND
Manufacturer Website Addresshttp://www.tp-link.com
Marketing InformationThe TD-W8961ND Wireless N ADSL2+ Modem Router is an All-in-One device that combines the function of a high speed ADSL modem, a 4-Port 10/100Mbps NAT router and a wireless access point. It is designed to give you a one-stop solution to acquiring and sharing high-speed Internet access over a wired/wireless network. Supporting the latest ADSL standards, the TD-W8961ND brings with it much higher speed than a dial-up connection. Complying with the IEEE 802.11n standard, users will get up to 15X the speed and 5X the range of conventional 11g products*. Now you can enjoy more kinds of bandwidth consuming applications like HD video streaming wirelessly which can not be accommodated by 11g products, from anywhere in your entire home or even the yard, imagine all the possibilities with TD-W8961ND wirelessly!
Package Contents
  • TD-W8961ND Wireless N ADSL2+ Modem Router
  • 1 x External Splitter
  • 2 x RJ-11 Telephone Cable
  • 1 x RJ-45 Ethernet Cable
  • Quick Installation Guide
  • Resource CD
  • 1 x DC Power Adapter
