I tested the JVC DLA-NZ700, and its performance is nothing short of a revelation for a mid-range 4K projector

JVC DLA-NZ700 projector: two-minute review

The JVC DLA-NZ700 is a new mid-range projector from the brand, combining its existing BLU-Escent laser light source and redesigned D-ILA 4K chipset into a more compact and lighter body.

The result with the JVC DLA-NZ700 is a highly capable beamer that builds on JVC’s success with the previously released DLA-NZ800 and DLA-NZ900, while allowing its lineup to more effectively compete with the best projectors in terms of price.

The new lens may combine plastic with glass, but it still delivers a crisply detailed image, and the picture accuracy is superb with both SDR and HDR. The latter really impresses thanks to JVC's proprietary dynamic tone mapping, along with support for HDR10, HLG and HDR10+. The laser power setting also offers more precise control for dialling in brighter HDR without fan noise.

What is most remarkable about the NZ700 is that, despite its lower price, it delivers a brightness and contrast performance that matches the earlier, and more expensive, NZ8. It even includes a colour filter to cover the DCI-P3 colour space, along with the Deep Black function and Balanced dynamic laser mode. There’s also an effective remote, redesigned menus, and flexible installation.

Of course, JVC has dropped some features to shave off costs, although most probably won’t miss the lack of 8K or 3D support. On the other hand gamers will bemoan the lack of 4K 120Hz, along with a rather high input lag. Otherwise, this affordable and feature-packed native 4K HDR projector will give any other high-end beamer a run for its money.

JVC DLA-NZ700 projector review: price and release date

• Price: £9,499 / $8,999 / AU$14,999
• Release date: May 2024


The JVC DLA-NZ700 (DLA-RS2200) is the mid-range model in the brand’s revised line-up of 4K laser-powered projectors. It’s available now and retails for £9,499 / $8,999. The NZ700 replaces the outgoing DLA-NZ7 (DLA-RS2100), and sits between the equally new DLA-NZ500 (DLA-RS1200) at £6,499 / $5,999, and the higher range DLA-NZ800 (DLA-RS3200), which costs £15,999 / $15,999.

JVC DLA-NZ700 projector review: Specs

JVC DLA-NZ700 projector review: design and features

• World's smallest native 4K projector
• New 80mm hybrid lens
• Gen2 Frame Adapt HDR

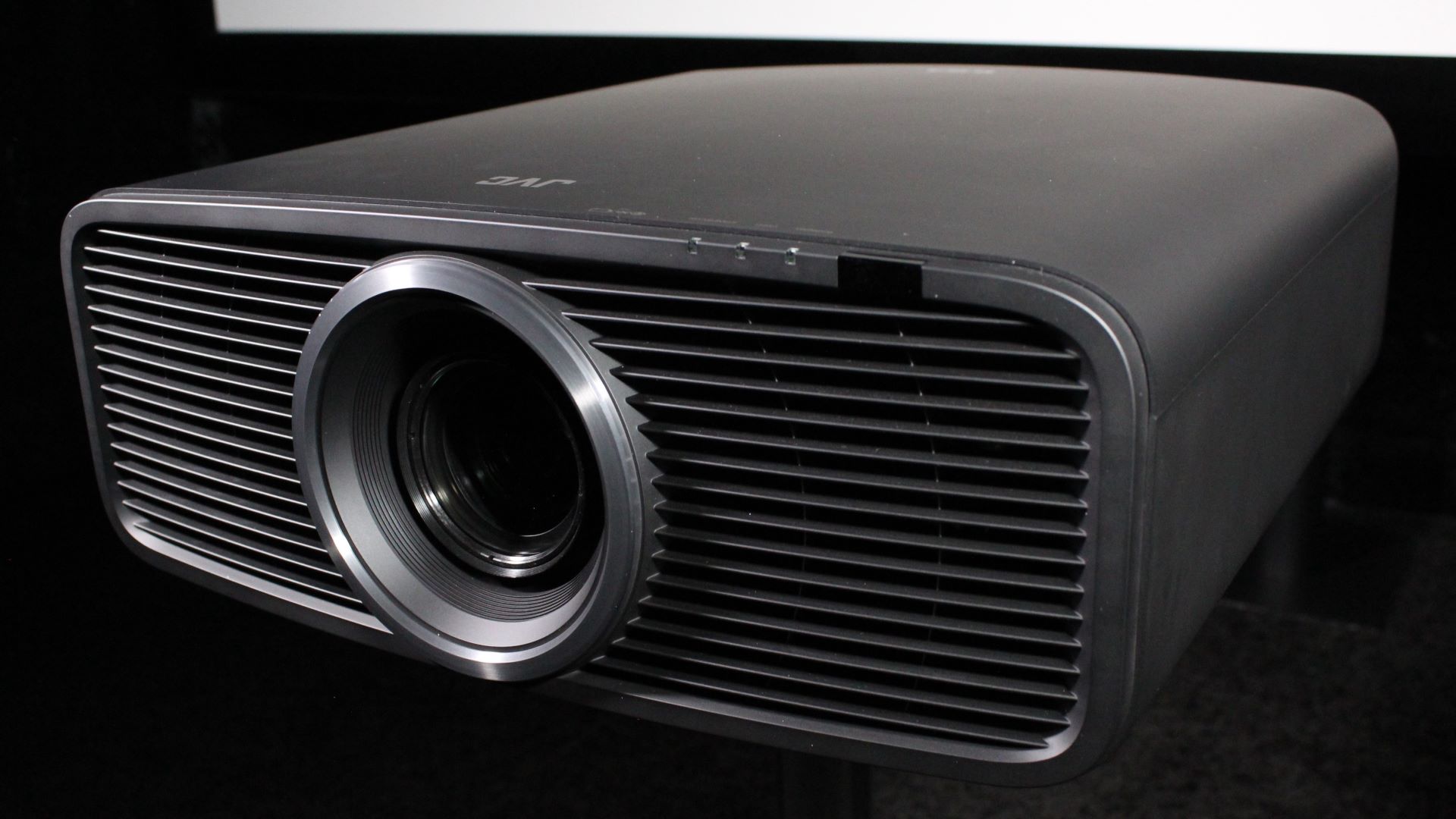

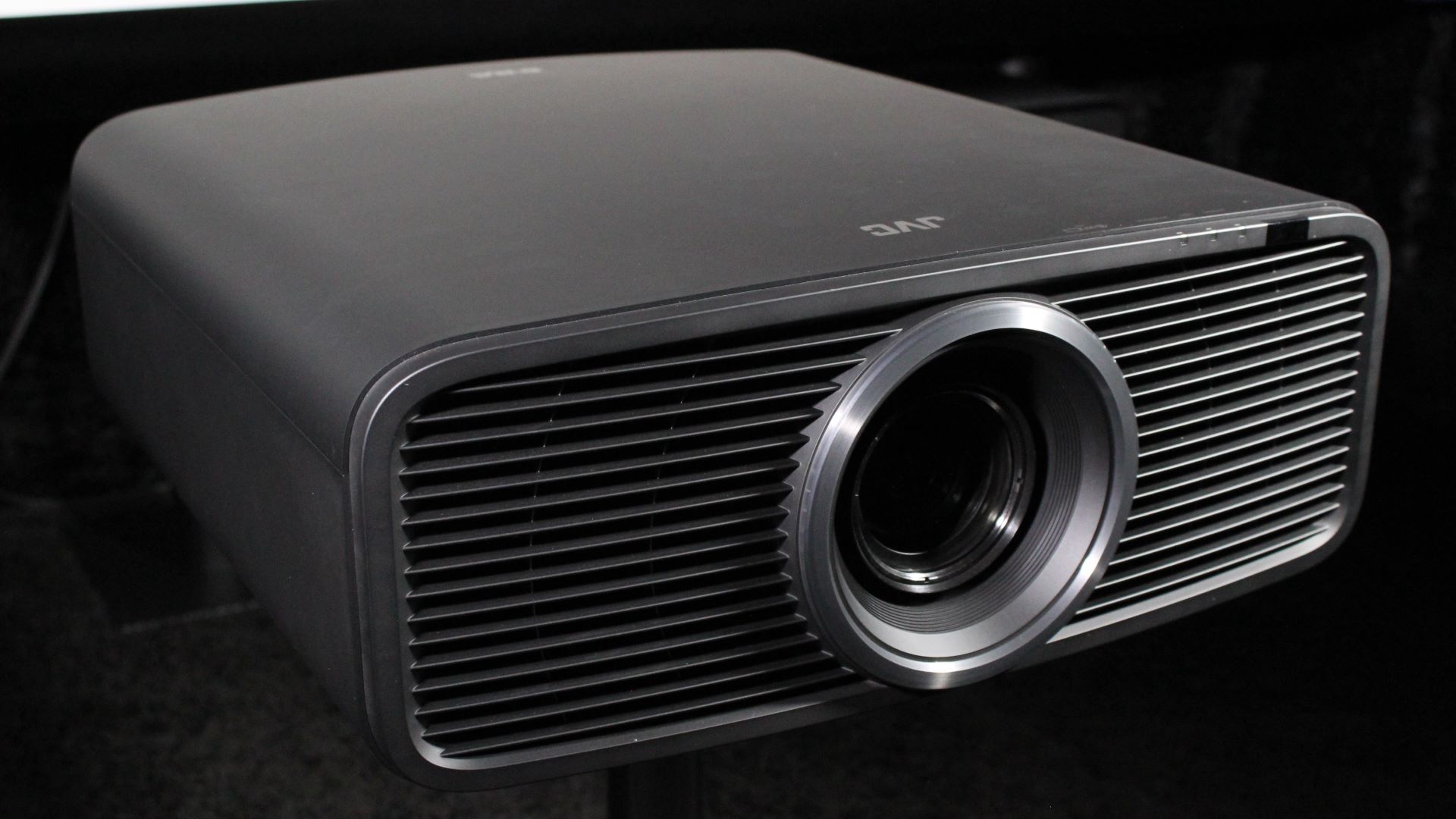

The JVC DLA-NZ700 sports a completely new design inside and out, resulting in a more compact chassis that, along with the NZ500, makes it the world’s smallest native 4K projector. The NZ700 is noticeably smaller and lighter than its predecessor, especially when they’re placed side by side.

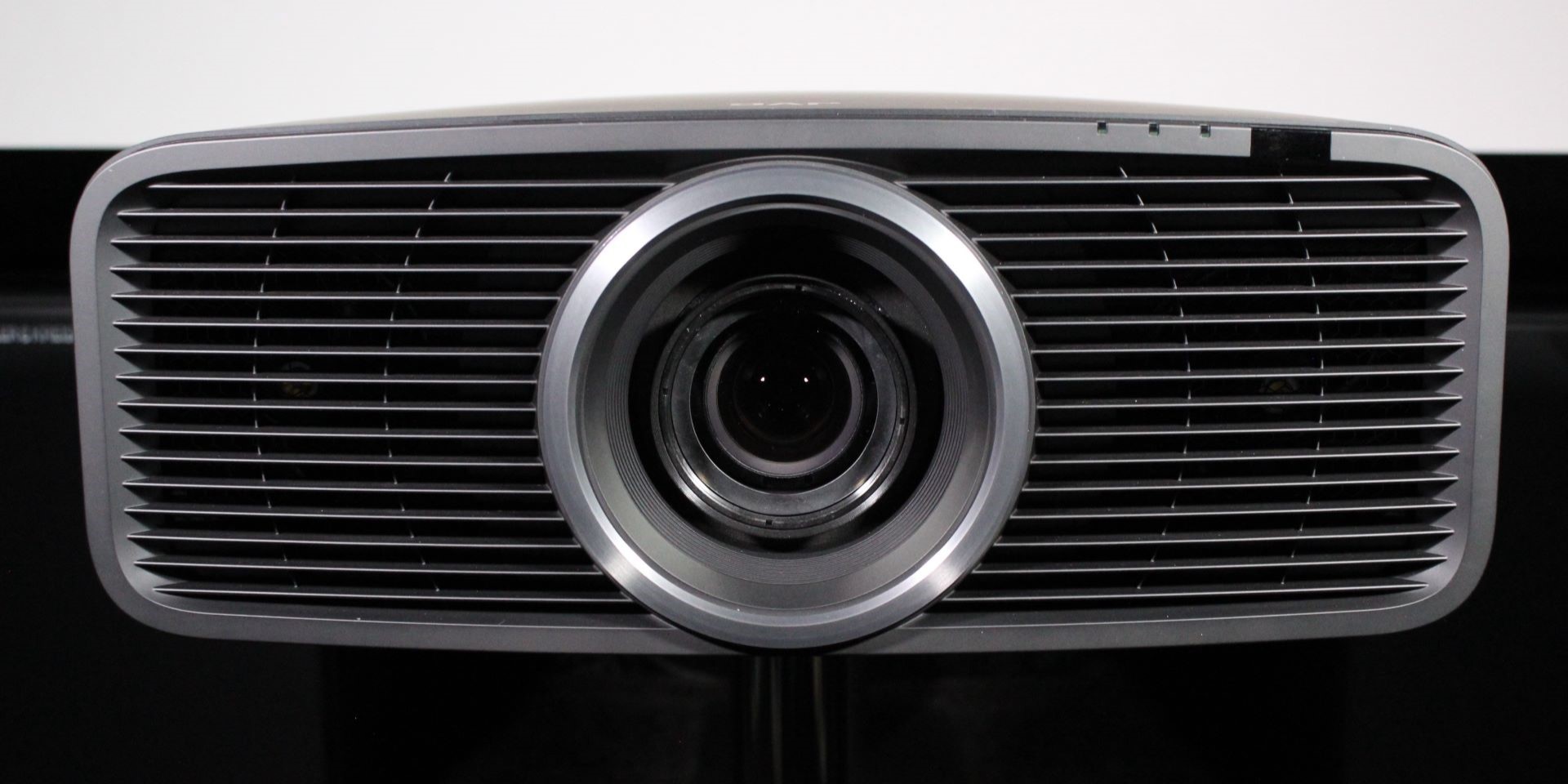

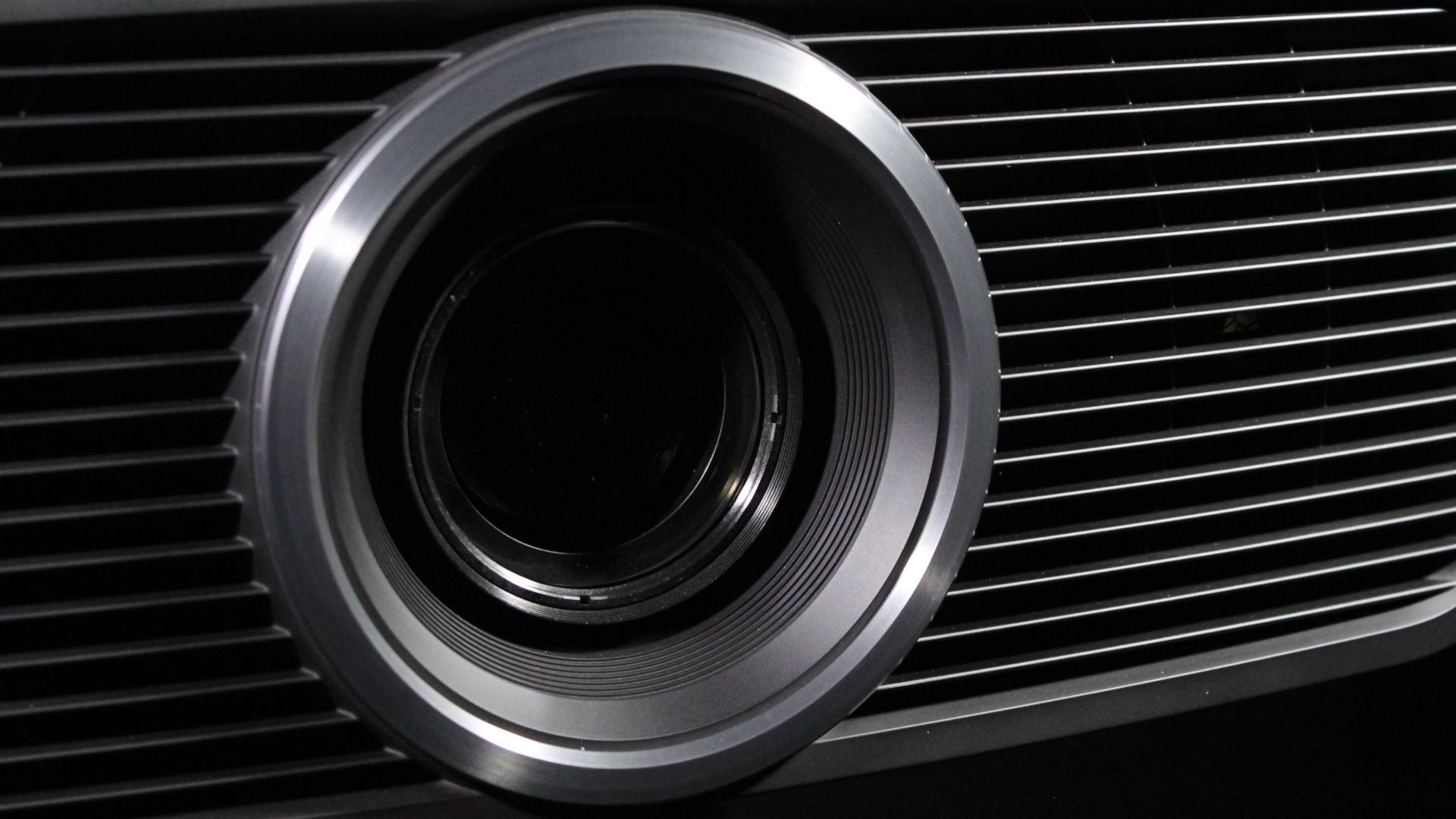

The NZ700’s size and weight have been reduced by utilising a new optical unit and 80mm hybrid lens. However, the build quality remains excellent, and the NZ700 is still finished in matte black, making it ideal for dedicated home theatre installations. It measures 450 x 180 x 479mm (18 x 7 x 19 inches) and weighs in at 15.2kg (33.5lb).

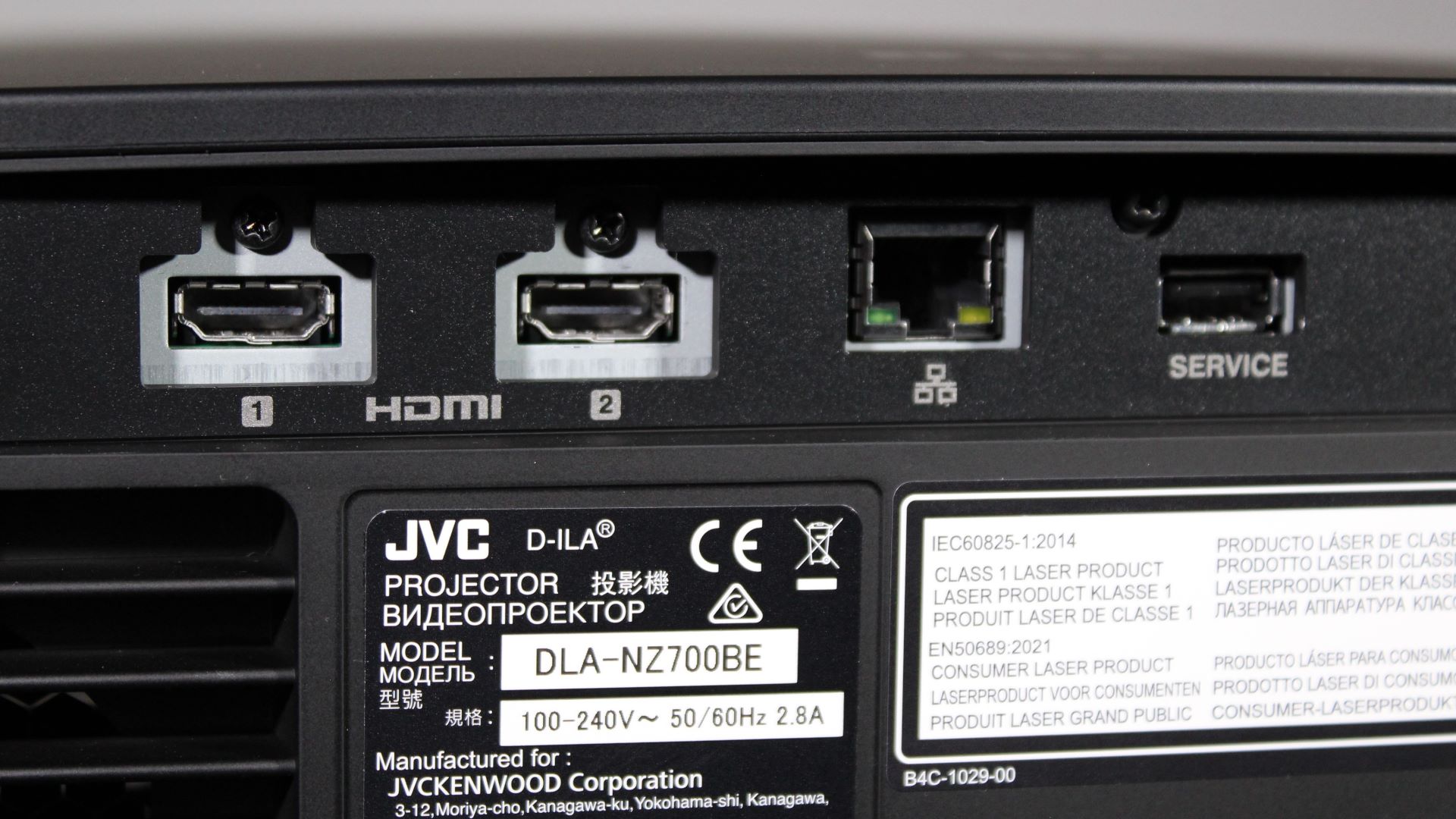

At the rear are a pair of HDMI 2.0 inputs that support bandwidths up to 32Gbps and are limited to 4K 60Hz (which isn’t great news for console or PC gamers). The HDMI ports can also handle HDCP 2.3, and high dynamic range – specifically HDR10, hybrid log-gamma (HLG), and HDR10+.

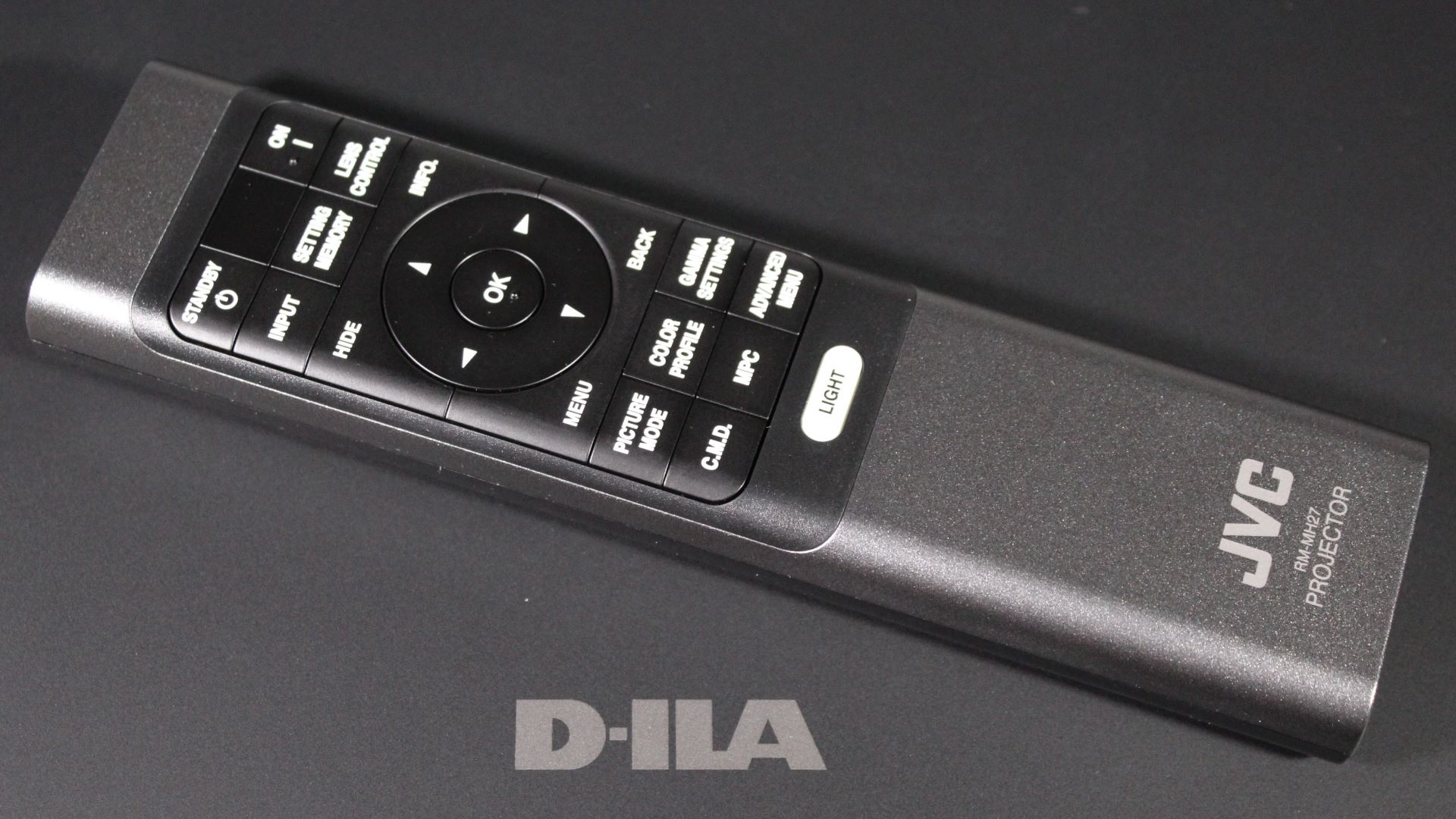

The provided remote is the same slightly tweaked version included with the NZ800 and NZ900, with its more luminescent light button, and small bumps on the on/off and enter buttons – all of which make this well-designed controller very easy to use in a fully blacked-out home cinema.

The JVC DLA-NZ700 incorporates the same third-generation D-ILA 4K chipset introduced on the NZ800 and NZ900. The new design is more efficient, allowing for brighter images, deeper blacks, and improved uniformity. As a result, despite using the same laser light source as earlier models, the NZ700 has a claimed peak brightness of 2,300 lumens and a native contrast ratio of 80,000:1.

In addition to the improved black levels offered by the upgraded D-ILA chipset, the NZ700 has the new Deep Black function with its revised algorithm to further enhance contrast without crushing shadows. In addition, the dynamic laser control includes the new Balanced setting for pictures that appear punchier without introducing the brightness fluctuations seen on earlier models.

The NZ700 has the improved sliding scale control in the laser power sub-menu, allowing for more granular adjustments as you gradually boost brightness without a sudden increase in fan noise, thus enabling the creation of more useful settings for HDR. There’s also the new “Vivid” mode that JVC added previously for watching SDR sports or gaming in a room with some ambient light.

The NZ700 retains the BLU-Escent laser diode light source with its claimed minimum 20,000-hour lifespan and greater consistency. Other features include motorised focus, zoom and shift controls, which makes installation easier, plus there are lens memories for different aspect ratios on a 2.35:1 screen. There’s also a Filmmaker Mode, along with ISF-certified calibration controls.

JVC’s tone mapping remains state-of-the-art, with the latest proprietary Gen3 Frame Adapt HDR dynamically analysing HDR10 content on a frame-by-frame basis to optimise the image, while 18-bit gamma processing results in smoother and finer gradations. However, JVC has dropped the Theatre Optimiser, which enhances tone mapping based on your screen’s size, shape and gain.

In addition to the existing analysis of an incoming HDR signal, the NZ700 now reads the Display Mastering Luminance (DML) metadata that tells the tone mapping the peak brightness of the display on which the content was originally mastered. This is useful because the more metadata the tone mapping has to work with, the better the results in terms of the displayed HDR images.

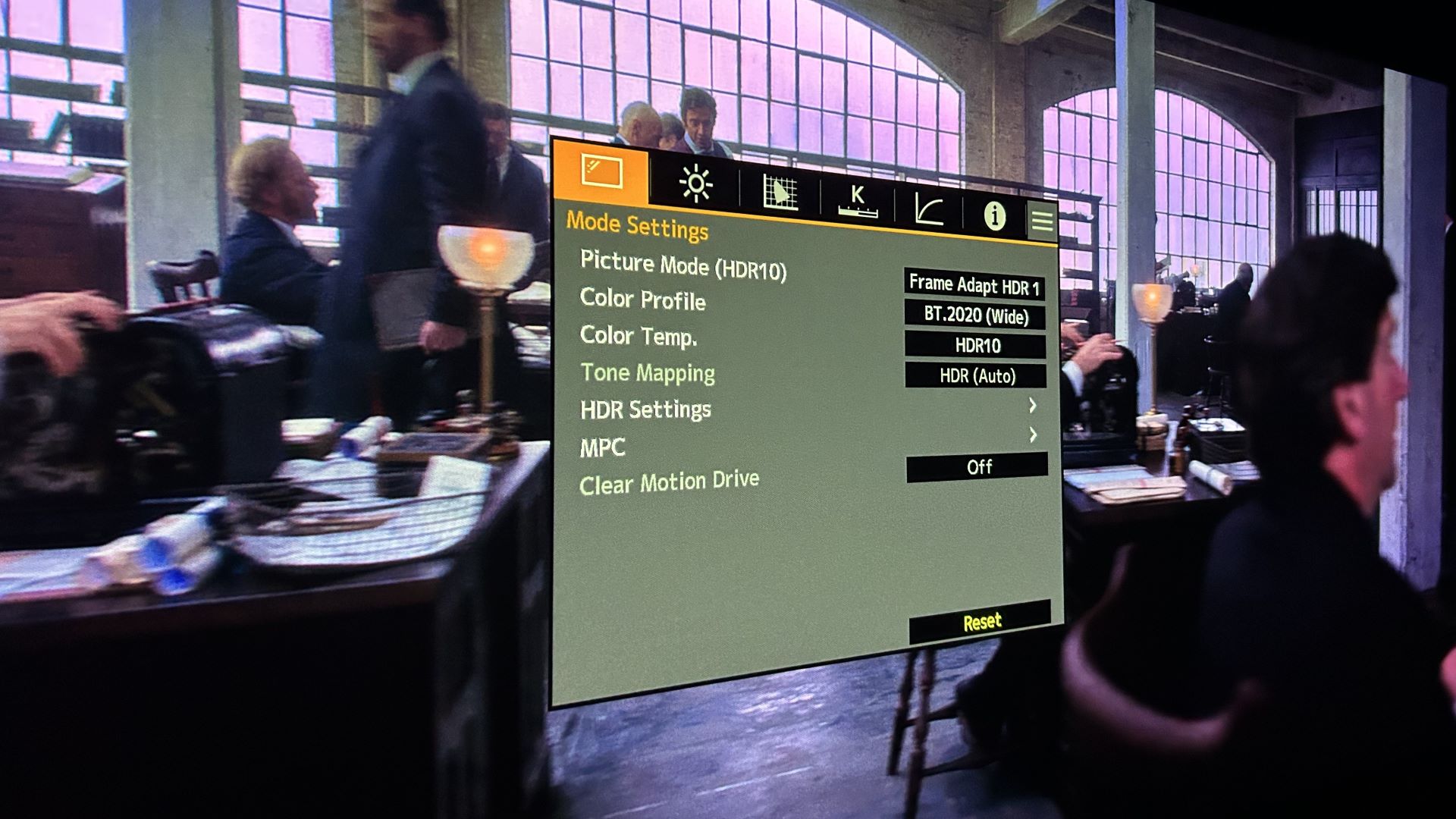

The NZ700 has a revised menu system compared to the NZ800 and NZ900, with a new main Setting Menu Select page. Here you choose between Picture Settings, HDMI Settings and Installation Settings. Once you’ve selected the Settings you want to adjust, you’ll find all the related sub-menus for those particular settings available, and you can move between them.

• Design and features score: 4.5/5

JVC DLA-NZ700 projector review: picture quality

• Detailed and cinematic 4K delivery
• Impressive HDR tone mapping
• Wide colour gamut filter

The JVC DLA-NZ700 is nothing short of a revelation, and delivers a performance that I could immediately see was comparable to the NZ800 I reviewed previously. There are similar components, such as the D-ILA chipset and laser light source, but I hadn’t anticipated the new lens producing such a sharp image, nor did I expect the black levels to be quite so impressive.

My first impressions were confirmed during testing, with the NZ700 delivering a contrast ratio of nearly 50,000:1, which is better than the earlier and more expensive NZ8. The laser brightness approaches the claimed 2,300 lumens, although you only hit these peaks in the Vivid mode, and in the preferable Filmmaker or calibrated Natural mode, this is closer to around 1,700 lumens.

The out-of-the-box SDR accuracy is excellent with the white point close to the industry standard of D65, an even greyscale, and colours hitting their saturation targets for BT.709, but this can be improved through calibration. I was able to get reference accuracy using the built-in controls, and anyone spending nearly nine grand should really get their new NZ700 professionally calibrated.

This accuracy also extends to HDR, with the NZ700 covering 97% of DCI-P3 with its colour filter in place. What’s even better is the filter only reduces the brightness by about 15%, although if you’d rather not use the filter (and with HDR10+ you don’t have a choice), then the brightness increases, but the gamut coverage now drops to around 83% of DCI-P3 instead.

The NZ700 may be more affordable, but it still includes JVC’s class-leading HDR tone mapping with the beamer not only accurately tracking the PQ curve standard, but also using dynamic tone mapping to get the best out of content based on the available metadata and real-time analysis of the HDR signal. The ability to read the Display Mastering Luminance also helps in this regard.

The Deep Black feature remains a useful addition, bringing slightly more detail out of shadows while keeping the blacks suitably inky. The Balanced dynamic laser setting is also useful, adding greater depth at the low end while also boosting the brightness at the other end without any ‘pumping’ in the image itself. The superior tone mapping ensures the highlights are also free of clipping.

This NZ700 is equally impressive with motion handling, producing smooth pictures that are free of blurring and unwanted artefacts. The projector may be limited to 60Hz, but the motion with games remains excellent, although the responsiveness suffers due to the lack of a low-latency mode. As a result, this projector’s input lag measures 51ms, which is probably too high for serious gamers.

When it comes to SDR content, the NZ700 is a fantastic performer, producing detailed and natural images that enjoy added depth thanks to the impressive contrast ratios. Watching Samsara on Blu-ray reveals a remarkably detailed image, and any concerns I had about the new 80mm lens using a combination of plastic and glass were dispelled by the finely rendered images on display.

Moving on to HDR, the NZ700 continues to dazzle with a spectacular delivery that retains all the fine details in the snowy landscapes of The Revenant. The colours of The Greatest Showman burst off the screen during the musical numbers, and the rain-soaked neon-lit streets of Gotham are bathed with beautifully rendered blacks, deep shadows and nuanced colours in The Batman.

The dynamic tone mapping is very adept at optimising the performance of the NZ700, and the resulting HDR is often comparable to high-end video processors that cost more than the projector itself. When able to use the dynamic metadata of HDR10+, the results are equally impressive, and the kinetic and colourful Motorball sequences in Alita: Battle Angel are brought vividly to life.

• Picture quality score: 5/5

JVC DLA-NZ700 projector review: value

• Exceptional value for money
• Has no direct competitor
• The sweet spot in JVC's projector line-up

The JVC DLA-NZ700 represents remarkable value, especially when you consider it offers much of the same image quality and feature set as the more expensive DLA-NZ800. Yes, you lose support for 8K 60Hz, 4K 120Hz and 3D, plus there’s no low latency mode, but in terms of overall picture performance there isn’t a significant difference between the two, making the NZ700 a great choice for film fans looking to save a few bucks without compromising on contrast and HDR tone mapping.

The NZ800 has a direct competitor in the form of the Sony Projector 8 (VPL-XW6100ES), which is priced at £15,999 / $15,999, while the flagship DLA-NZ900 goes up against the Sony Projector 9 (VPL-XW8100ES), which costs £25,999 / $31,999. However, the NZ700 currently has no direct competitor, and while it’s more expensive than the NZ500, Sony VPL-XW5000ES and Epson EH-QB1000, when you consider its performance and features, it may well be the sweet spot in the JVC projector line-up.

• Value score: 5/5

Should I buy the JVC DLA-NZ700 projector?

Buy it if...

Don’t buy it if…

Also consider...

How I tested the JVC DLA-NZ700 projector

• Measured with Calman calibration software
• Evaluated using SDR and HDR content
• Reviewed in a dedicated home cinema

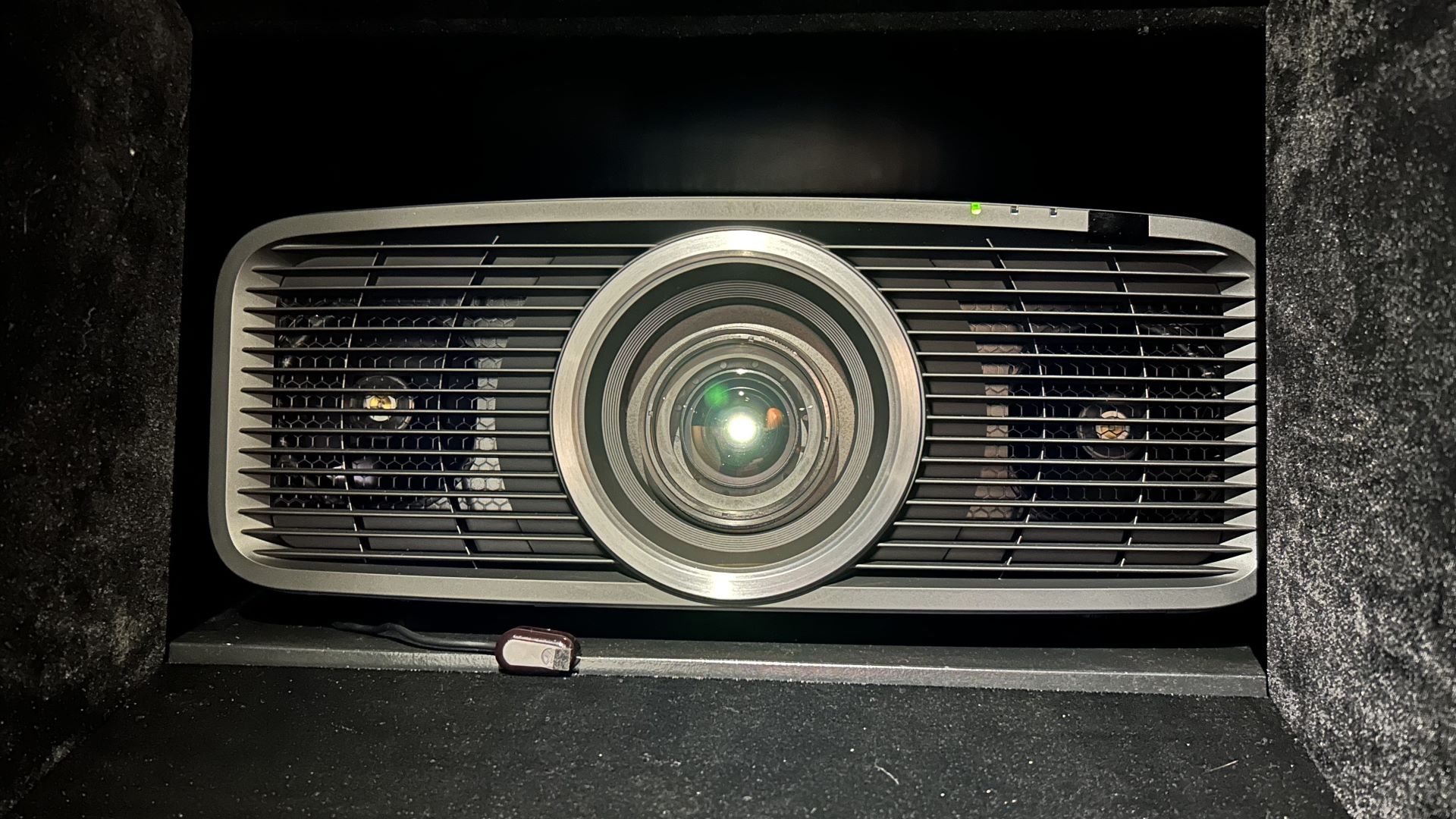

As with all my TV and projector reviews, I use a combination of subjective viewing and objective measurements against the industry standards. For projectors, I also do all my testing in a dedicated home cinema with a completely blacked-out environment and high-quality screen.

The subjective testing is based around watching a variety of familiar scenes, primarily sourced from 4K and 1080p Blu-rays, plus the Spears & Munsil UHD Benchmark 4K disc. Any test scenes have been specifically chosen to evaluate a display’s black levels, contrast performance, colour accuracy, upscaling, image processing, motion handling, and HDR tone mapping.

For the objective testing, I measured the NZ700’s brightness, greyscale and colour gamut in SDR, before doing the same in HDR. I also evaluated the accuracy of the HDR tone mapping, along with the colour gamut coverage for DCI-P3. To do this, I used a pattern generator and colour meter combined with Portrait Display’s Calman calibration software. I measured the NZ700’s input lag in milliseconds using a specialised Leo Bodnar tester.

First reviewed: May 2025
