Have you ever had a PC that started making strange whining noises? Even if you've investigated the cause of the noises, which can often sound pretty serious when you hear them, you may not realise the reason for them. The chances are they're caused by a cooling fan with dust in its bearing.

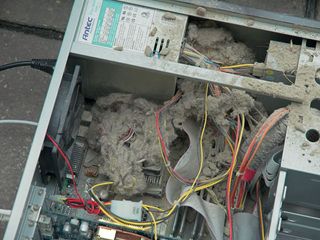

Fans are one of the few components in a PC which have unsealed moving parts. By their nature, they have to be open to the air to suck heat out of the machine and push cool air in. As a result, they're extremely susceptible to all the airborne particles that make up household dust.
Contrary to popular myth, household dust is not primarily composed of human skin. In fact, although there are some skin cells present in virtually all house dust, its composition varies quite dramatically from area to area, season to season and room to room.
As you might expect, it includes pet hairs, pollen, plant seeds and broken-down insect remains, as well as lots and lots of particles of dirt. Both the organic and inorganic components of house dust can be troublesome to a machine with moving parts. Minute fragments of minerals can become trapped between bearings and shafts, while a build-up of softer material can act as a brake and slow a fan's rate of rotation.
Thankfully, with a little DIY work on a typical desktop PC case, you can increase the reliability of the fans, which in turn ensures proper cooling of all your system's important components: processor, video card, memory and power supply.
The simple answer to fan failure is to filter the air that enters your PC. Doing this isn't difficult at all, and here's a really simple way to cut out the muck.
1. Find a filter
The obvious filter material for a PC intake is that used for screening dust in a vacuum cleaner filter pad, since this material is designed expressly to perform this function.
These filter pads are cheap and readily available from all good electrical shops, and since you'll mark out and cut the filter material to fit your particular PC, it doesn't matter which vacuum cleaner model filters you buy.
You're after the largest area of filter you can get for your money, though, so go through the different models. You may be able to buy filter material in sheets, which could be even cheaper. It won't be a major outlay: you're typically looking at spending just a few pounds for a bag of filter pads.
2. Hold it in place
To get started, you'll need to find something to hold the filter material in place over the intake on your PC's case. You could stick it in place, but that would make it hard to replace periodically. Fortunately there's a ready-made holder for the filter material in the form of a simple J-shaped plastic extrusion.
This kind of extrusion is normally used to hide the rough edges of hardboard or acrylic sheet fittings, but it's just as good for holding vacuum filter material, and the gap is ideal for use as a slide fit. It's available in strips from DIY chains like B&Q and Homebase for a couple of pounds a metre.
You should be able to get all the lengths you need to add filters to a typical PC from one extrusion pack. Measure the size you need to hold the filter material in your PC and cut it to length with a craft knife.
In most cases, two strips placed at the top and bottom of the filter will work best, but for small areas a single strip may suffice. You can attach the strips of extrusion to the case with double-sided tape, applied first to the extrusion and then to the PC's case. This tape is readily available from most DIY stores.
3. Cut the filter to size
Measure the ventilation holes in your PC's case and cut out a cardboard template for each. Lay each template on the filter material and draw round it with a marker to make the inserts. Keep the templates, so you can renew the filters every so often.
You can fit filter pieces to the fan ports on power supplies and hold them in place by undoing the mounting screws and screwing them back through corresponding holes in the filter material.
Cut the filter material with scissors – a craft knife tends to snag. Though it's generally an unwoven, felt-like material, filter pads can still be cut into quite intricate shapes if needed.
4. Fit it to your PC
Fitting the filters, once you have the extrusion and filter material cut to size, is very simple. Stick the extrusion strips to the top and bottom of the case vent and slide the prepared filter strip between them so they're gripped in the channels.
Filters can be added inside or outside the case, whichever is more convenient (the result will look neater if they're added on the inside, of course). Try not to stick the extrusion over holes making up part of the case vent.
Adding the filter will reduce the airflow through the vents in comparison with unfiltered vents, but not significantly – a fan running slowly because of dust in its bearing will suffer far more.
5. Change it regularly
If all this Blue Peter-style DIY seems like overkill, it's worth mentioning that your author, who runs three working PCs pretty much continuously, was replacing a fan roughly every four months between these machines. This is in a domestic rural environment with few vehicle fumes or other typical urban contaminants to clog the workings up.
Since installing filters and nano-ceramic fans, not a single fan has had to be replaced and all are continuing to run quietly and provide specified levels of airflow. Changing the filters on each PC takes around 10 minutes to cut the material to size and another 10 minutes to fit. That's just 20 minutes every six months, probably less time than it typically takes to download and install a Service Pack.
Look at the used and fresh filter elements in the picture here and you can see that the filter's pretty effective and catches a lot of dust that would otherwise end up inside your PC.
-------------------------------------------------------------------------------------------------------
First published in PC Plus Issue 289
Liked this? Then check out How to make a laptop cooling stand
Sign up for TechRadar's free Weird Week in Tech newsletter
Get the oddest tech stories of the week, plus the most popular news and reviews delivered straight to your inbox. Sign up at http://www.techradar.com/register
Your comments (6) Click to add a new comment
computer_dust_filters
July 18th 2011
6. Thanks for the nice article.
Alert a moderator
captcluster
April 18th 2010
5. I worked in photographic darkrooms for a while in the printing industry and my job was mostly to 'paint out' with a tiny paintbrush all the dust dots on the negatives, a total pain. Dust was greatly reduced by having a powerful filtered fan blowing into the darkroom to maintain positive pressure, just as has been described above. It wasn't 100% but has to be the best solution. A similar system is used in paint spraying workshops. The filter pads I have seen used have been around 12" square and I have often thought that It would be very effective to draw air through one and pipe it into a pc case. There would be no noise at the pc, extraction would not be needed and you could even cool the air prior to introducing it into the case. In hot climates, maybe the air could be picked up from an existing aircon unit. Of course I haven't tried any of this as i am a lazy bxxxxxd.
Alert a moderator
snapperman
January 24th 2010
4. OK, vaccum cleaner makers fit filters, vehicle manufacturers fit filters so why don't computer companies fit filters? As the ad says...simple.
Alert a moderator
1fastbullet
January 19th 2010
3. @linuxuser
I give you a lot of credit for being a user of Linux as I also am. Unfortunately, it doesn't mean that you are correct in this instance. In fact you are flat wrong and nacelle was correct when he stated that a positive internal case pressure is an effective means of preventing dust from entering the computer case via undesirable paths.
With positive internal pressure you have created a slight outflow of air where you would otherwise have intake of dust. With positive pressure, you control the intake path of air and, consequently, dust- that path being the intake fans which you are now able to filter.
Alert a moderator
rexel99
January 18th 2010
2. Yes, usually the air is sucked in through the drives and gaps of the case and drawn out and expelled through these fans and the one in the power supply. I would suggest that with the idea above, it would be great to reverse all fans so only filtered air is sucked in through those and then clean air expelled through the gaps and drives in the case. I add, be wary of the results and watch the temperature of the processor after you do this, especially on hot days.
Alert a moderator
nacelle
January 18th 2010
1. Nice article. But if you're putting filters over that spot of the computer, you're fans are set up wrong. That indicates that you've got a negative air pressure in your case. And air is being sucked from every little hole. Ever pulled out optical drives and they're covered with dust? This is why. Ideally you want possitive pressure. More air going in that can can get out. This means that you only have to filter the intake fans.
