Nvidia GeForce RTX 3070: Thirty second review
The Nvidia GeForce RTX 3070 does for 4K gaming what the GeForce GTX 970 did for 1080p gaming back when it was released by bringing a whole new world of image quality to the mainstream PC gamer.
Nearly a decade ago, 1080p gaming at max settings and high frame rates was considered the domain of elite PC builds, but all of a sudden the GTX 970 dropped and brought stunning full HD graphics to the best PC games to the everyday player, providing outstanding performance on games that are still considered graphically intensive such as Batman: Arkham Knight and The Witcher 3. With the GTX 970, you no longer had to break the bank or make compromises to get high-quality performance.
Now, the Nvidia GeForce RTX 3070 has done the same thing for 4K gaming. There are some differences, of course. When released, the GTX 970 came at a much more reasonable price, going for $329 (about £250, AU$460) upon release, while the RTX 3070 goes for a pricier, though still reasonable, $499 (£469, AU$809). Regardless, they share one essential thing in common by bringing the next revolution in gaming resolution to the masses.
There are more powerful graphics cards in the RTX 3000 series line, such as the impressively powerful GeForce RTX 3080 or the RTX 3090, but the Nvidia GeForce RTX 3070 is still a mighty performer that almost goes head-to-head with the previous generation’s flagship, the RTX 2080 Ti without costing $1,199 (£1,099, AU$1,899). And, that combination of affordable price and high performance makes it the best graphics card for those priced out of the elite-tier RTX 3080 and RTX 3090.
In fact, it is only second to the card we tested in our Nvidia GeForce RTX 3060 Ti review in terms of pure, unadulterated performance-to-price comparison.
Nvidia GeForce RTX 3070: Price and availability
The Nvidia GeForce RTX 3070 is available now, starting at $499 (£469, AU$809). That price is simply where the RTX 3070, including the Founders Edition reviewed here, will start, as aftermarket cards will be priced higher as additional features are added.
To put the level of performance on offer with the RTX 3070, you're essentially getting for $499 (£469, about AU$700) what would cost you $1,199 (£1,099, AU$1,899) with the RTX 2080 Ti in early September 2020.
The performance for the price on offer with the RTX 3070 makes this easily the best Nvidia GeForce graphics card at launch in terms of value, but even today, it is only eclipsed by the RTX 3060 Ti in terms of money spent for every point scored on a benchmark or frame per second achieved while gaming.
The competing card from Team Red we tested in our AMD Radeon RX 6700 XT review offers about the same value as the RTX 3070 when it comes to gaming, with slightly lower performance for a slightly lower price. So if you're looking for the best gaming graphics card at this price point, AMD's midrange card is definitely a viable alternative, but the RTX 3070 just smokes the RX 6700 XT in creative workloads.
If you're looking for a graphics card that can game and do graphically intensive tasks like applying filters in Adobe Photoshop or rendering scenes in Blender, than this is the card you need to be buying.
Nvidia GeForce RTX 3070: Features and chipset
GPU: Nvidia GA104
Stream multiprocessors: 46 (128 CUDA per SM)
CUDA Cores: 5,888
Tensor cores: 184
Ray tracing cores: 46
Power Draw (TGP): 220W
Boost clock: 1750MHz
VRAM: 8GB GDDR6
Memory Speed: 14Gbps
Interface: PCIe 4.0 x16
Outputs: 1 x HDMI 2.1, 3 x DisplayPort 1.4
Power connector: 1 x 12-pin
The Nvidia GeForce RTX 3070 is powered by the Ampere GA104 GPU. This GPU has 5,888 CUDA cores spread across 46 Streaming Multiprocessors, based on the same Nvidia Ampere architecture as the RTX 3080 and RTX 3090. And, as with those cards, there are a ton of improvements both to raw performance and to power efficiency here that drive this mid-range graphics card to performance levels matched only by the very best graphics card of the last generation.
The biggest generation-on-generation improvement from Turing to Ampere is that both data paths on the Streaming Multiprocessor (SM) now support FP32 workloads, which sees an effective doubling of CUDA cores per SM. That's why, while the RTX 2070 had 36 SMs, it had just 2,304 CUDA cores. So, while the RTX 3070 only boosts SM count up by 27%, it more than doubles the CUDA core count, which massively boosts raw rasterization performance.
That's impressive enough, but we're also getting second-generation RT cores and third-generation Tensor cores, which means both ray tracing and DLSS are much more performant and efficient. Ray tracing especially is much faster, as this new RT core brings twice the throughput as the first-generation RT core found on graphics cards like the one in our Nvidia GeForce RTX 2080 review.

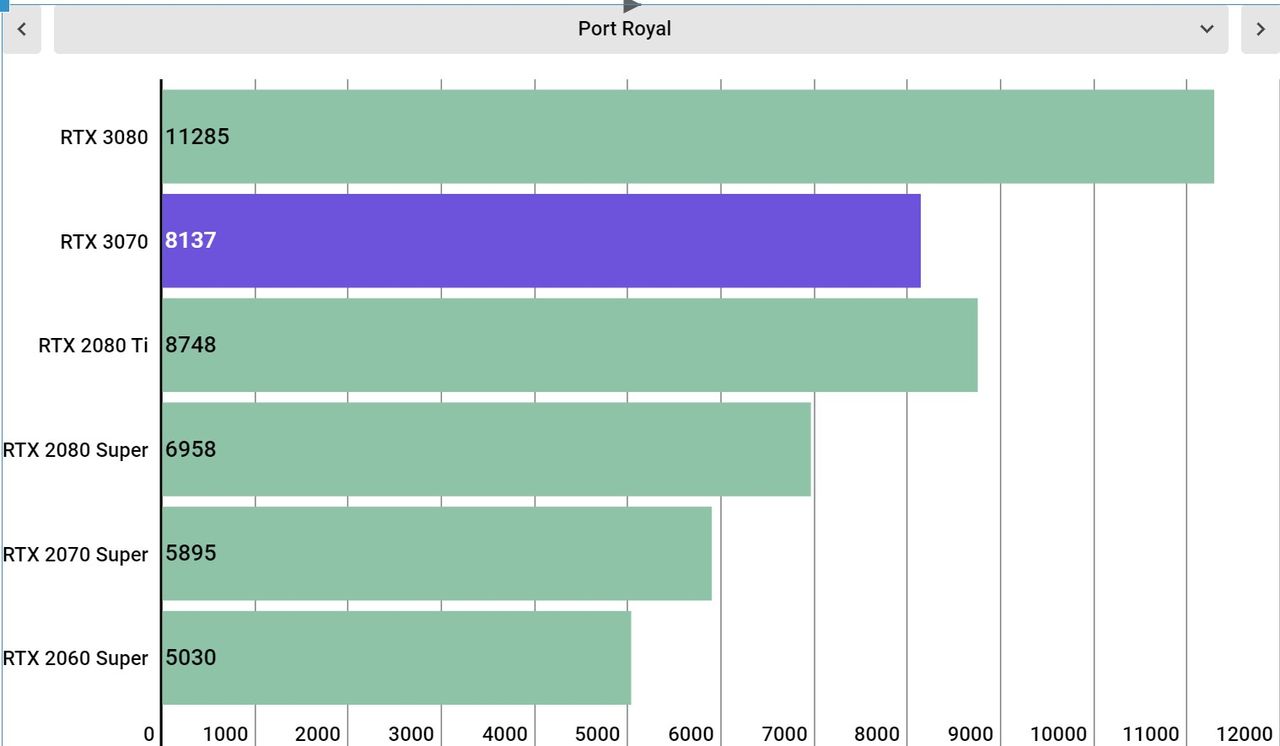

This is why, in ray tracing-heavy workloads like the 3DMark Port Royal benchmark, the RTX 3070 is able to keep up with the RTX 2080 Ti, even though the last-generation flagship has many more RT cores.

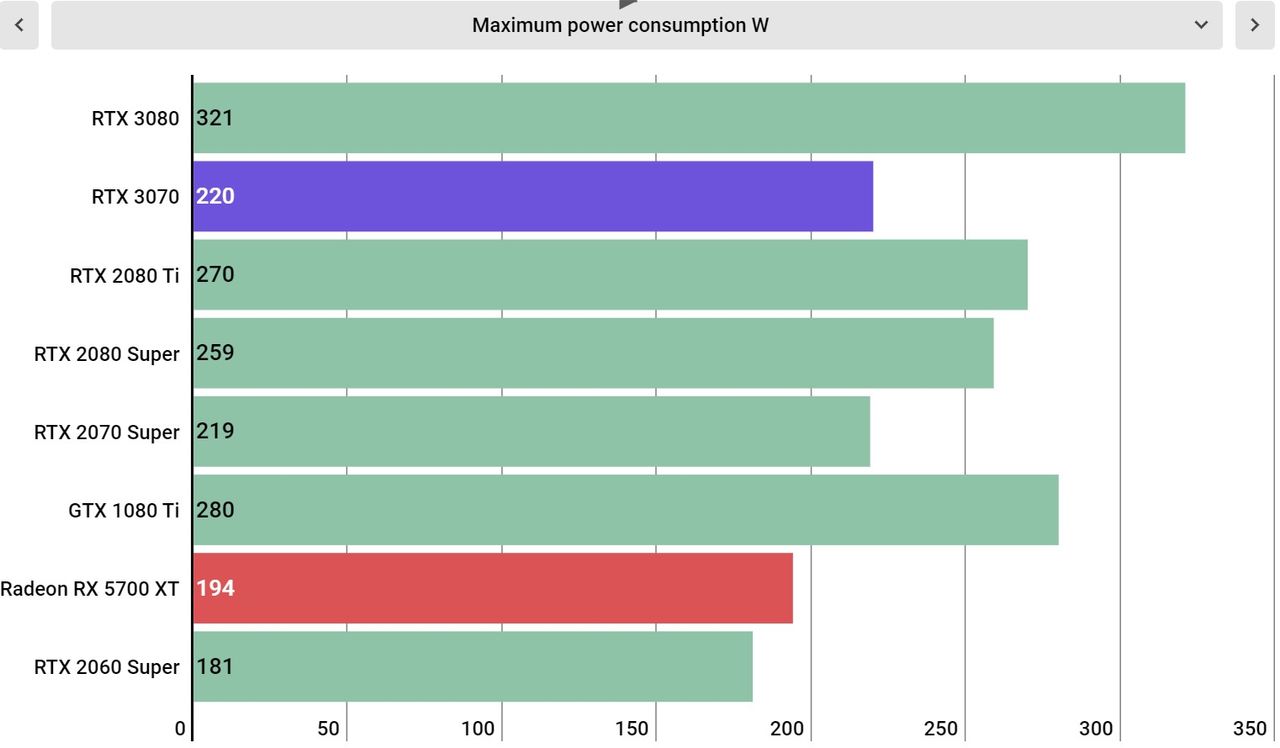

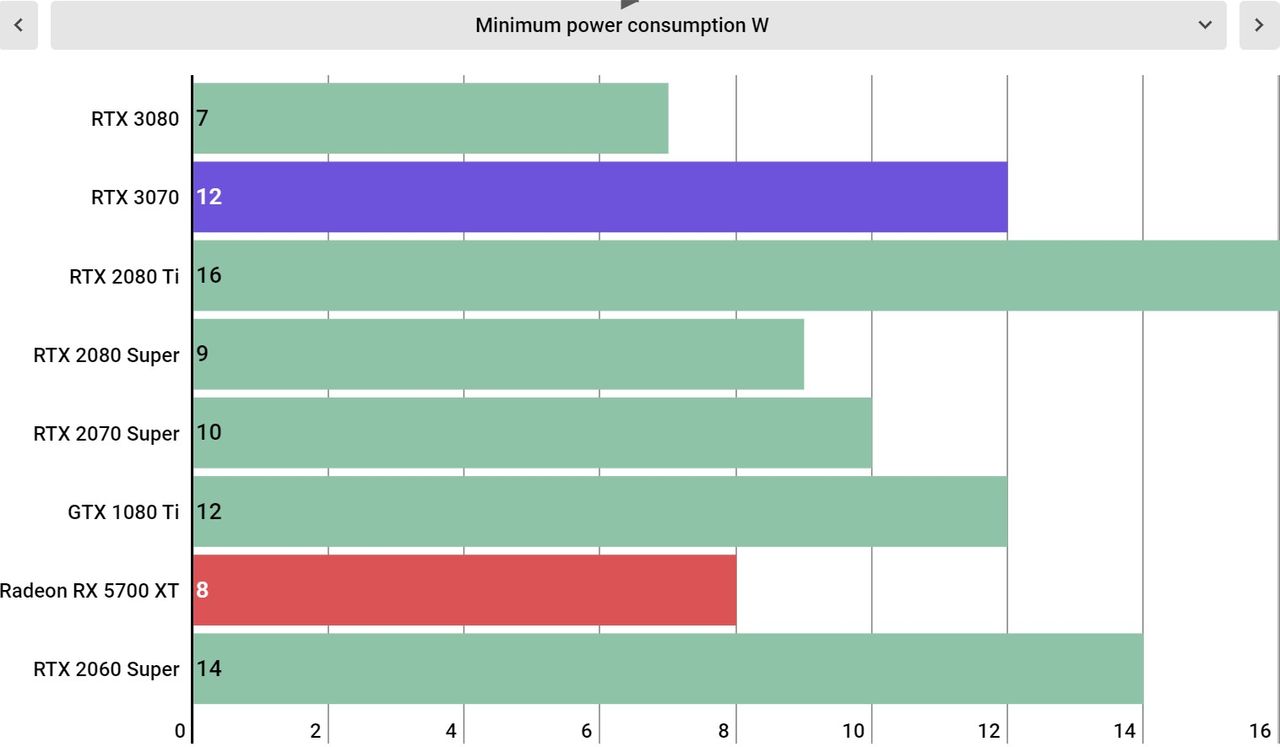

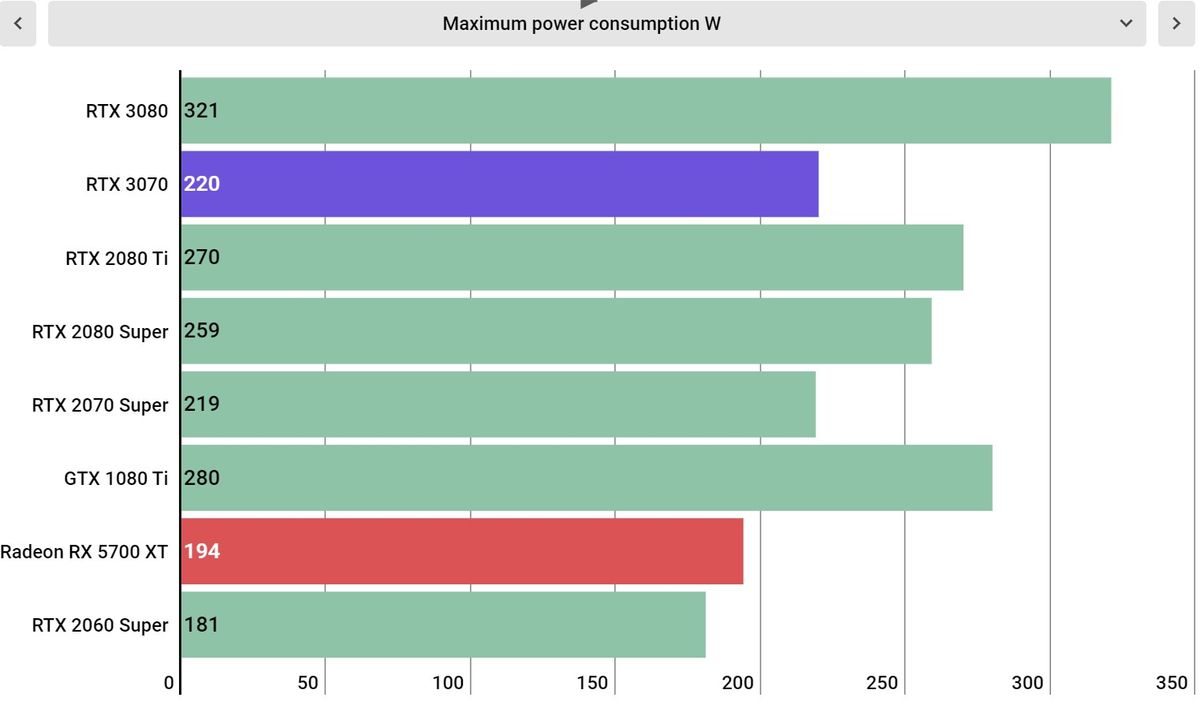

The Nvidia GeForce RTX 3070 is also the only graphics card in the Ampere lineup with a reasonable level of power consumption, with a TGP (total graphics power) rating of 220W, 100W less than the RTX 3080. This means that cooling requirements are going to be a whole lot less intensive than the more powerful Ampere cards, which should be excellent news for folks that don't have a ton of room in their cases for larger graphics cards.
That's a whole lot of jargon, but what's important here is that while the RTX 3070 is a much smaller chip, it's able to pack way more meat into it, at a lower price, making last-generation flagship performance available to the mainstream.
But beyond just straight generational improvements to the architecture, the Nvidia GeForce RTX 3070 brings a ton of features that are going to be super useful whether you're into PC gaming or are just stuck in an endless cycles of video calls.
One of the biggest features here is Nvidia Broadcast, which is aimed at folks that are streaming games, but the utility is much more broad. For instance, in video calls, this piece of software will use the AI Tensor Cores to either blur or replace your background, and do it much more effectively than built-in options in programs like Zoom. The best part is that it works no matter what video conferencing software you're using. Whether you're on Google Meets or Discord, OBS or Zoom, you can use this software to get rid of the background.
This software also bundles in the RTX Voice software that debuted in 2020, masking background noise out of your microphone, or even out of the voice inputs of the other people you're in a meeting with.
There are also a couple of technologies that are going to directly benefit gamers, namely Nvidia Reflex and RTX IO. RTX IO is perhaps the most important, especially with the next generation PS5 and Xbox Series X around the corner, bringing with them truly next-generation data access through their SSD solutions.
Nvidia's RTX IO will work with the upcoming Microsoft DirectStorage API to optimize the delivery of data straight from your SSD to the GPU. The way it works now is when a game needs to access data, that data goes from your storage to your CPU, then to system memory, where it's then fed back through your CPU to your graphics card, to then finally go to your VRAM.
RTX IO, when it's available, will cut the CPU out of that equation, cutting out one of the biggest bottlenecks in modern PC gaming. There aren't any games that utilize this storage API yet, but when it does we should see massive cuts to both load times and to overhead in massive open world games.
Nvidia Reflex, on the other hand, is available now, and simply cuts latency between your CPU and GPU by clearing out the Render Queue, so frames are only rendered when they're needed.
As with the rest of the Nvidia Ampere lineup, the Nvidia GeForce RTX 3070 is a fully-featured product that does more than just render the top-tier AAA PC games. If any of this software sounds useful, an RTX graphics card should be on your list, and the RTX 3070 just so happens to be the second-best value RTX graphics card on the market.
While we're always going to recommend the RTX 3060 Ti as the workhorse graphics card of this generation, if you have a bit more money to spend, the RTX 3070 is the graphics card to buy, as it's improved performance is worth every scrap of cash you've gathered together to buy it.
Nvidia GeForce RTX 3070: Design
This is the system we used to test the Nvidia GeForce RTX 3070 Founders Edition:
CPU: AMD Ryzen 9 3950X (16-core, up to 4.7GHz)
CPU Cooler: Cooler Master Masterliquid 360P Silver Edition
RAM: 64GB Corsair Dominator Platinum @ 3,600MHz
Motherboard: ASRock X570 Taichi
SSD: ADATA XPG SX8200 Pro @ 1TB
Power Supply: Corsair AX1000
Case: Praxis Wetbench
The Nvidia GeForce RTX 3070 Founders Edition is very reminiscent of the rest of the Turing cards, but it's much smaller, thanks to the lower power and cooling requirements of the mid-range card.
It's still a dual-slot card, but it's much shorter, measuring just 9.5 inches (242mm) long, making it much easier to fit into smaller cases than something like the RTX 3080 which is nearly a foot long at 11.2 inches (285mm). For people with small PC builds, this is going to make way more sense than a more powerful graphics card.
Unlike its bigger siblings, however, the RTX 3070 has both its fans on the same side of the cooler, rather than the unique push-pull configuration that the RTX 3090 and RTX 3080 Founders Editions feature. The RTX 3070 does have a similar PCB, however, in that everything is super dense, which allows for the cooler to extend beyond it. That means that the second fan still pushes air through the back of the graphics card, letting it still operates in a similar manner.
This solution isn't quite as efficient as either the RTX 3080 or RTX 3090, but it doesn't really need to be. The TGP is just 220W instead of the RTX 3080's 320W, which means that temperatures are naturally going to be easier to manage. So, the RTX 3070 still reaches a peak temperature around 72°C, even with the lower power consumption.
However, even with the lower power consumption, you still have to use Nvidia's new 12-pin power connector, which doesn't make a ton of sense. An adapter is included, but it's a single 8-pin to 12-pin, and that makes us wonder whether it was truly necessary. There are more PSU manufacturers that are creating custom cables to get rid of the extra clutter that these adapters inherently bring, but that's something you'll still have to fork over cash for.
But beyond the aggravating power connector, the RTX 3070 Founders Edition looks sleek as hell, and should have no problem fitting into pretty much any build. This current round of Founders Editions are some of the most attractive graphics cards we've ever seen, and with how good they are at keeping things cool, the FE cards are our de facto recommendation if you can find one.
Nvidia GeForce RTX 3070: Performance

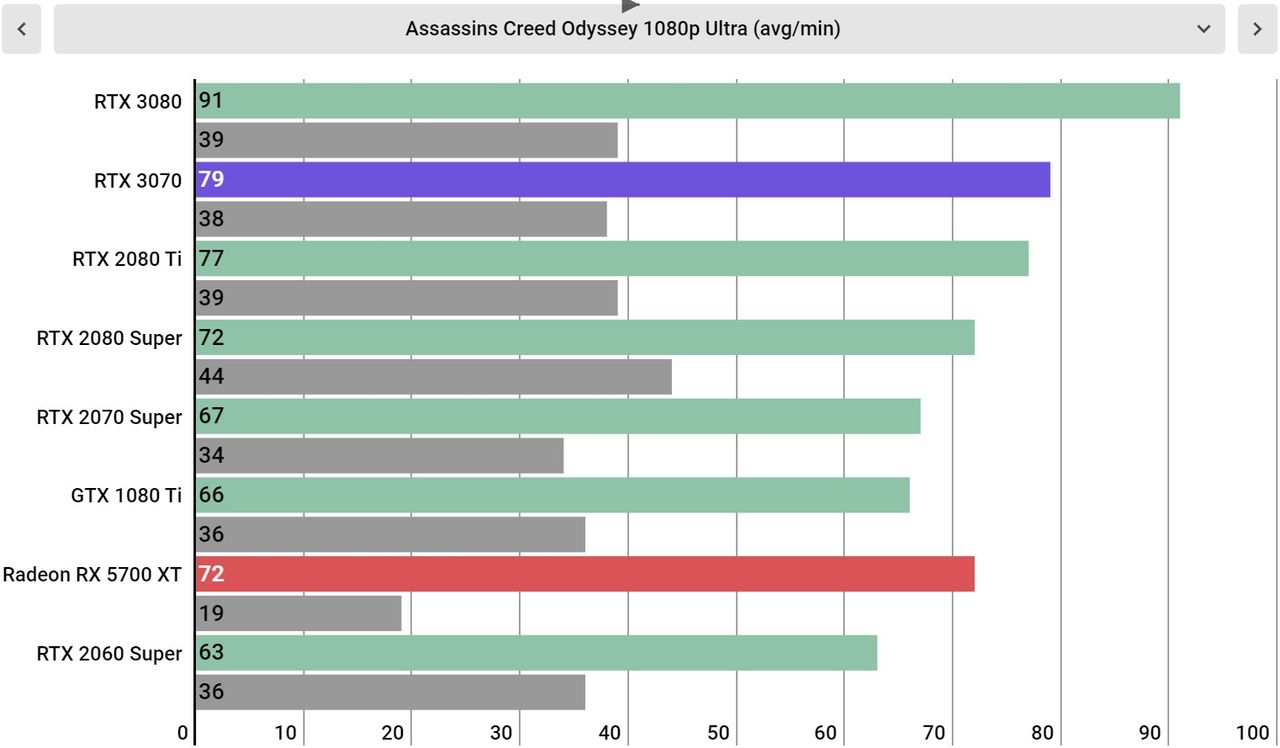

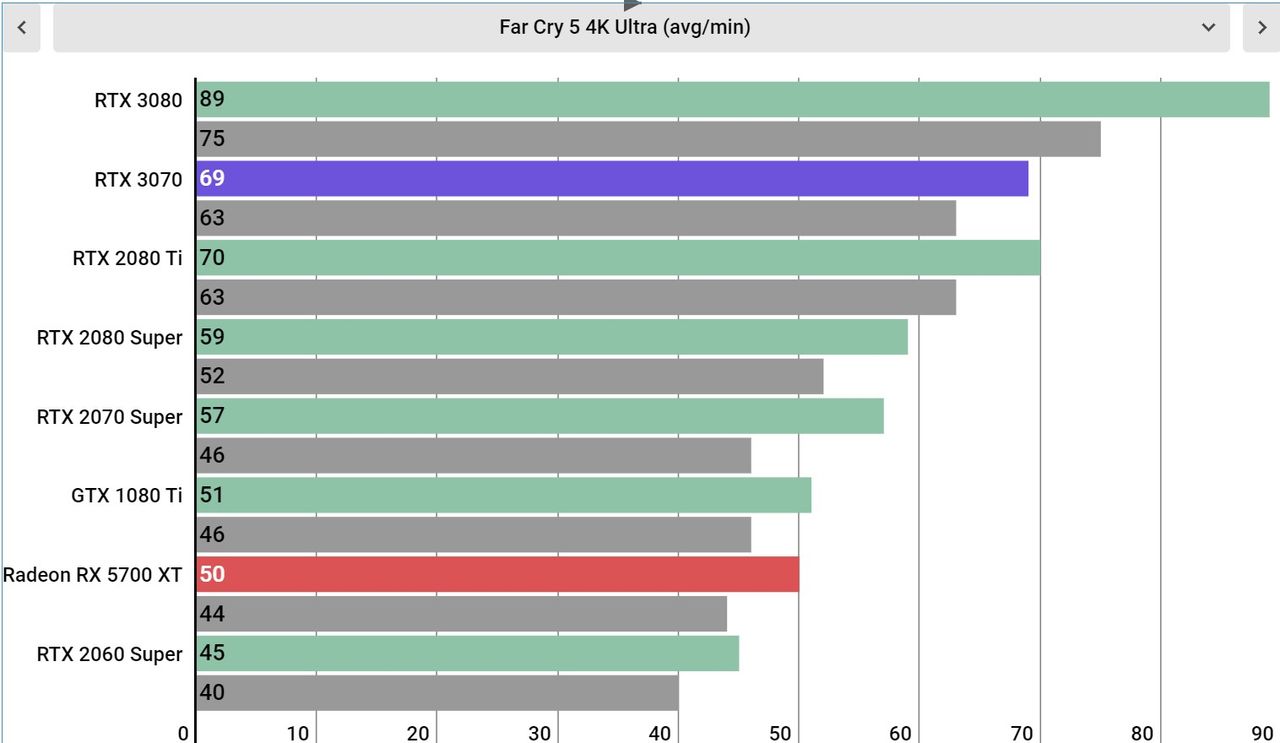

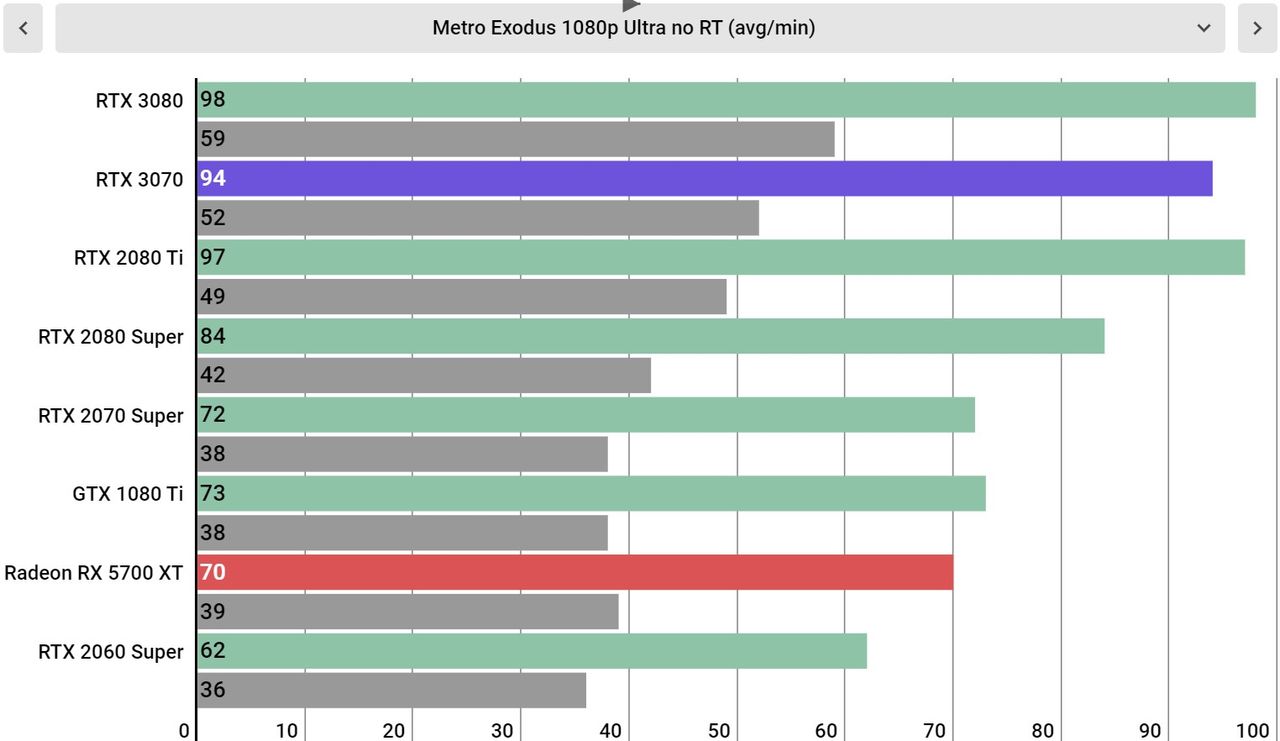

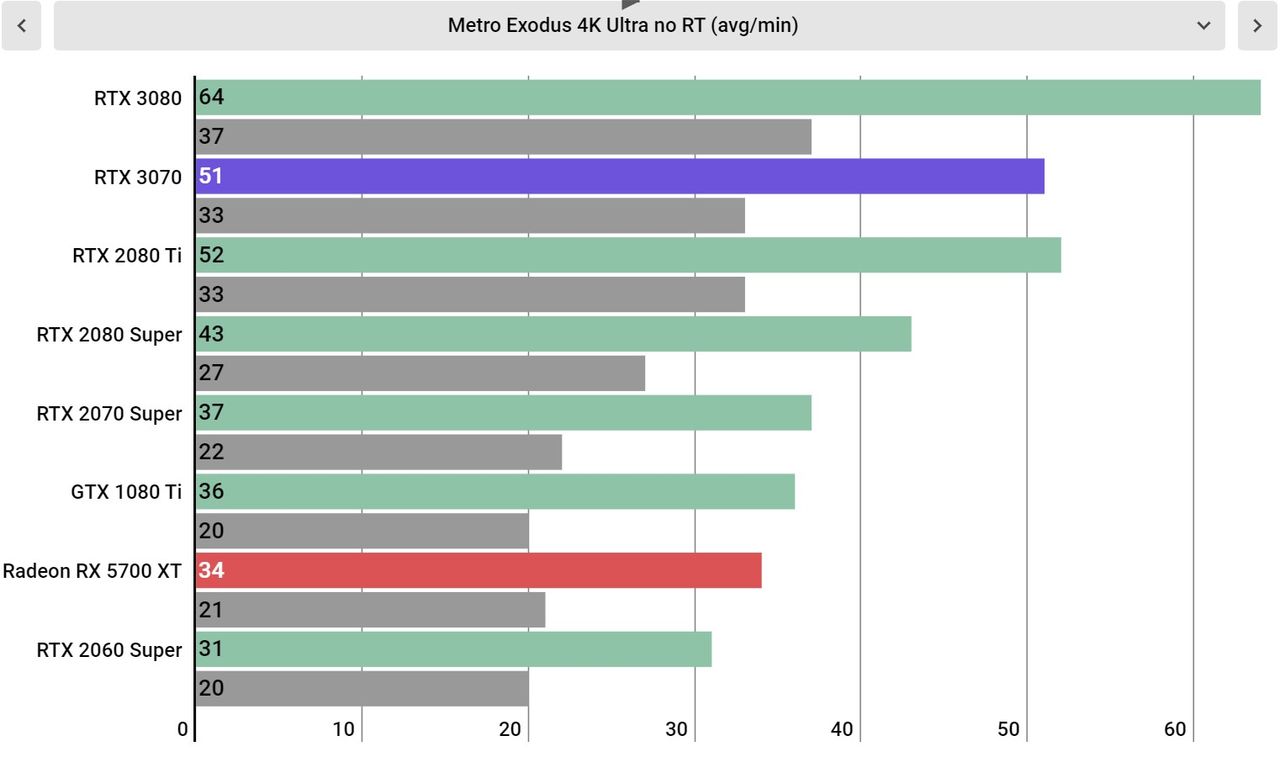

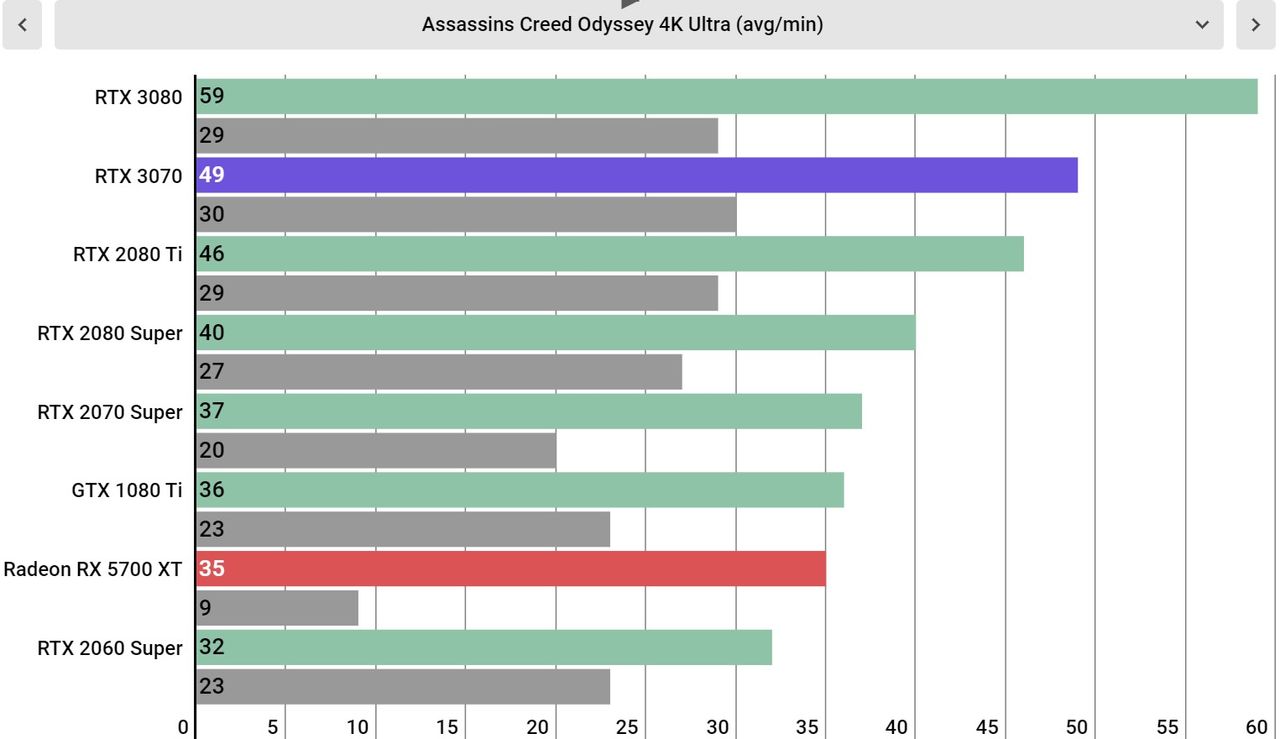

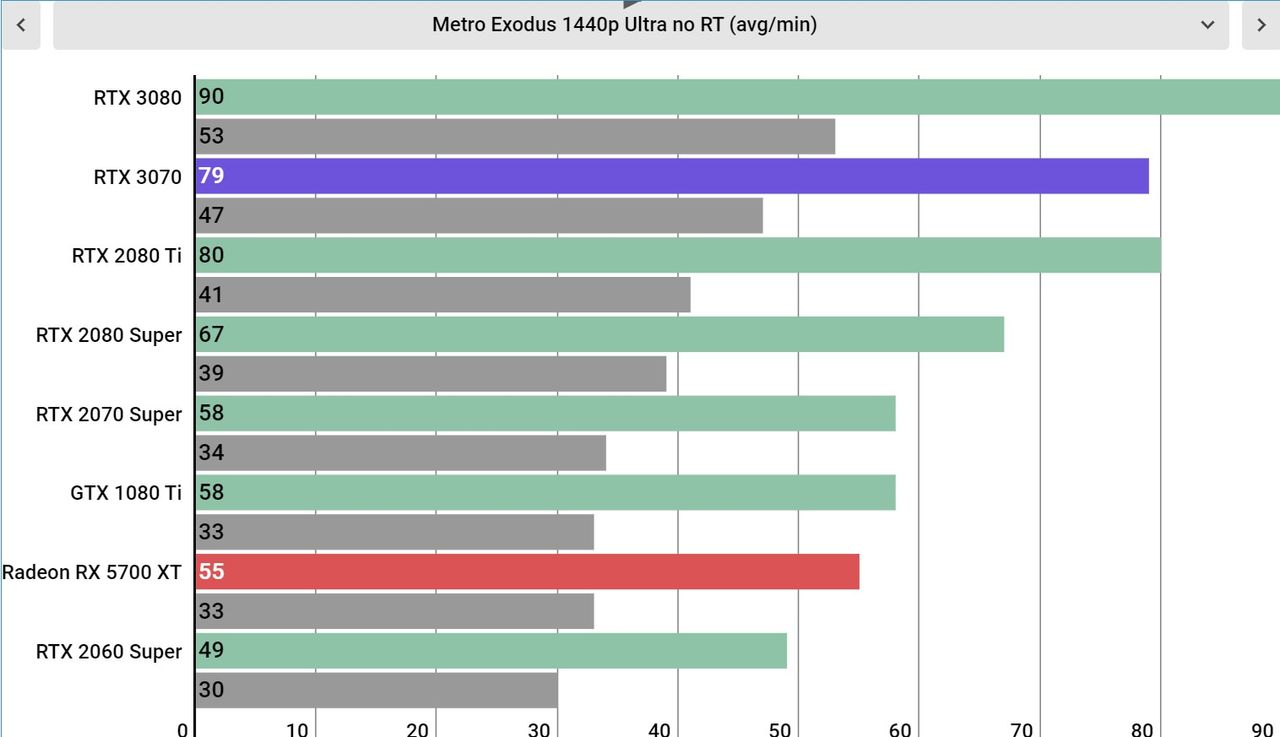

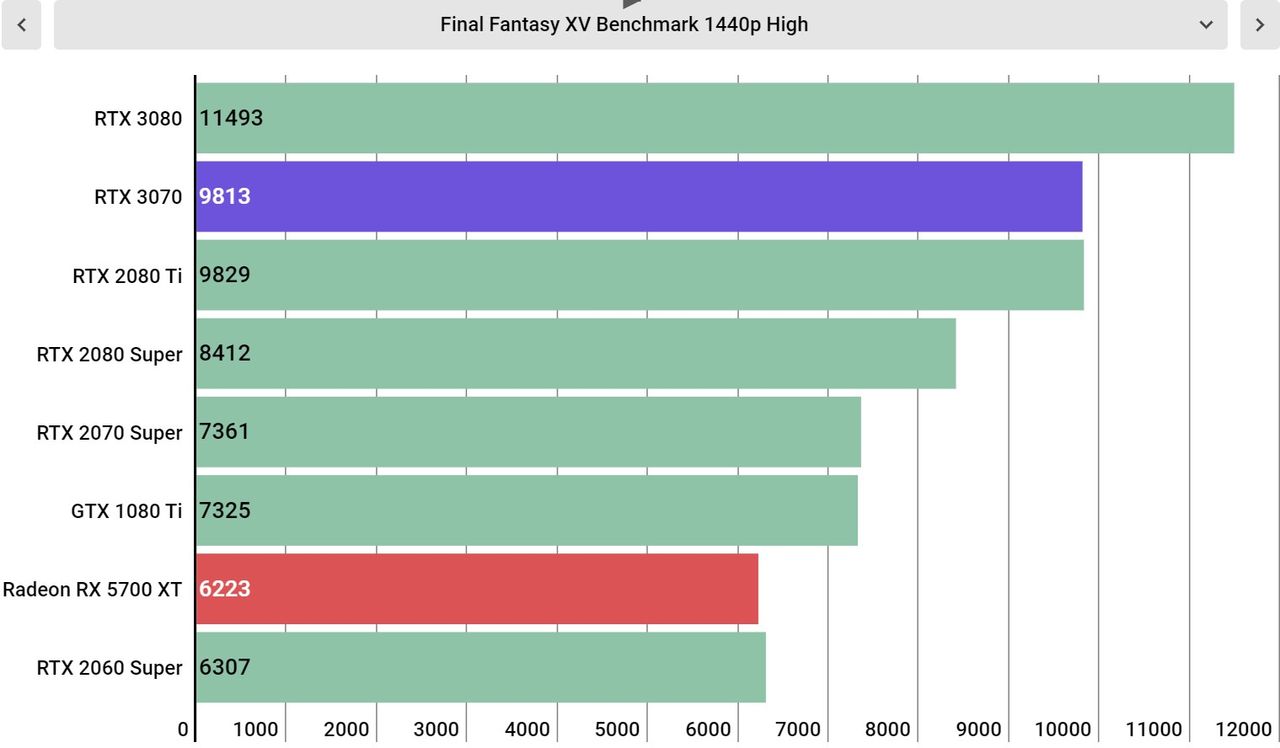

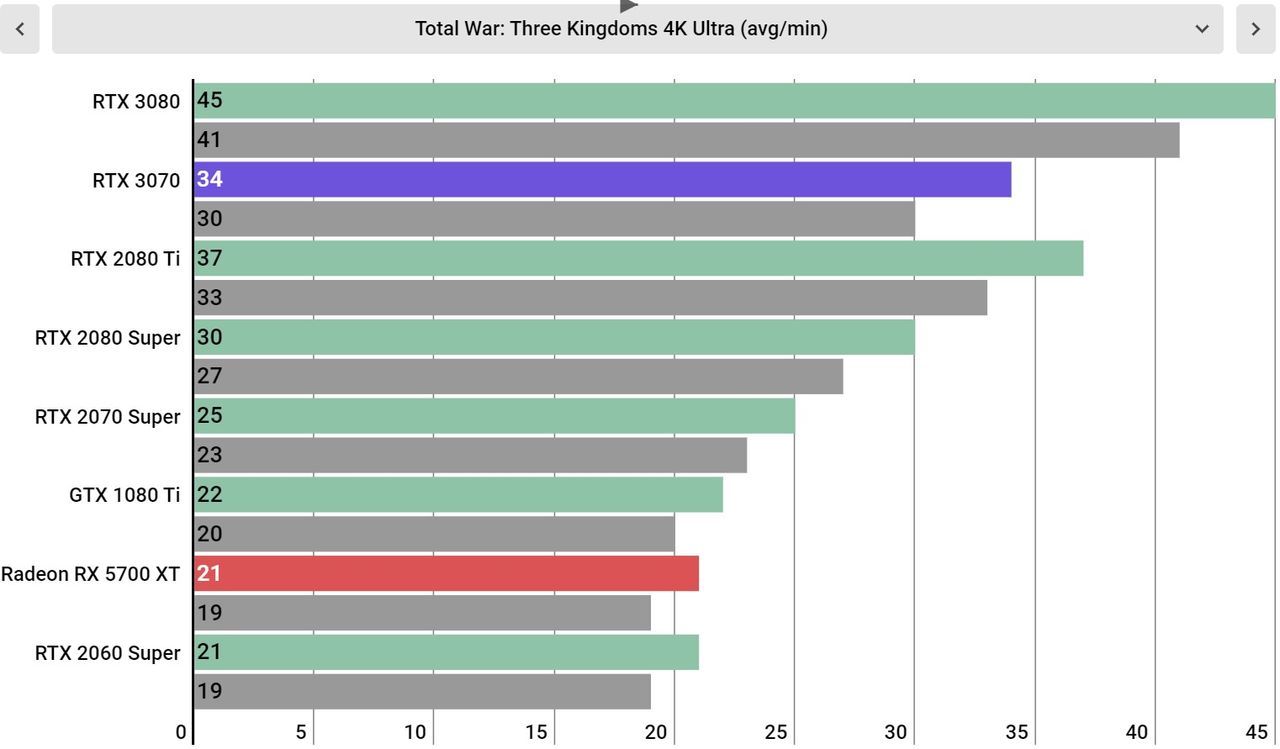

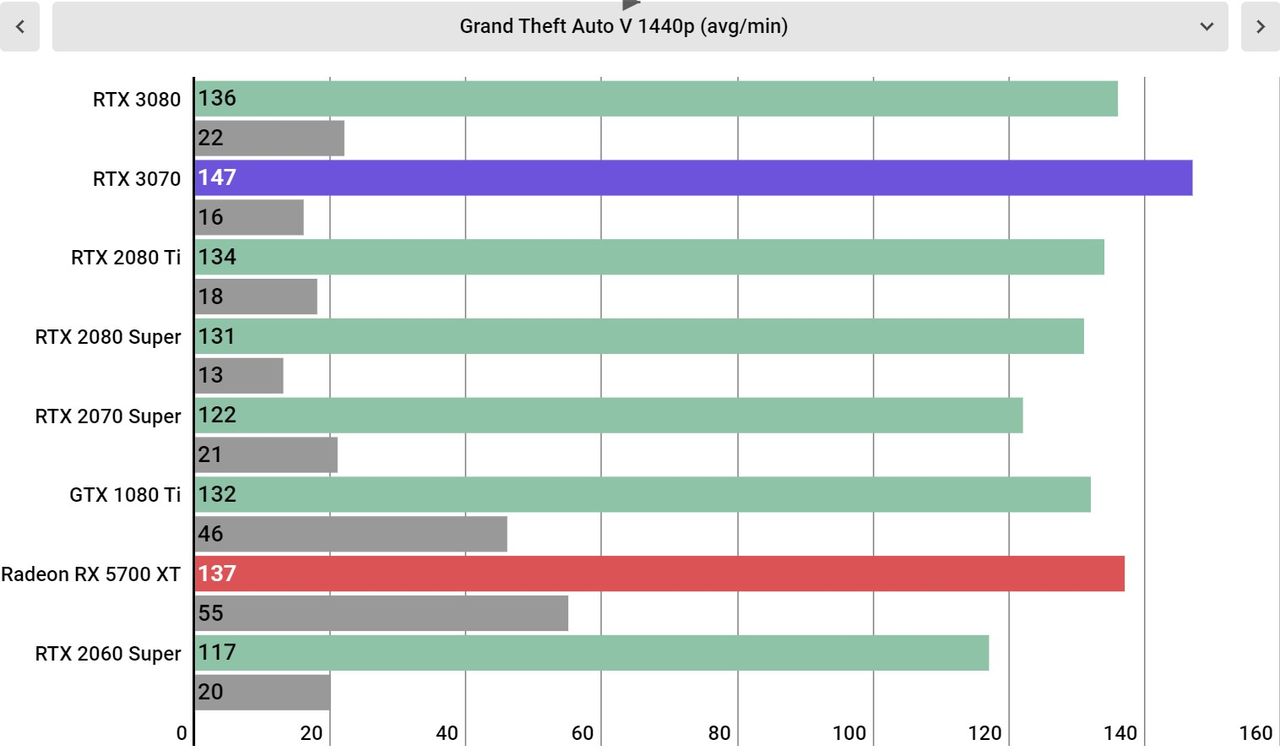

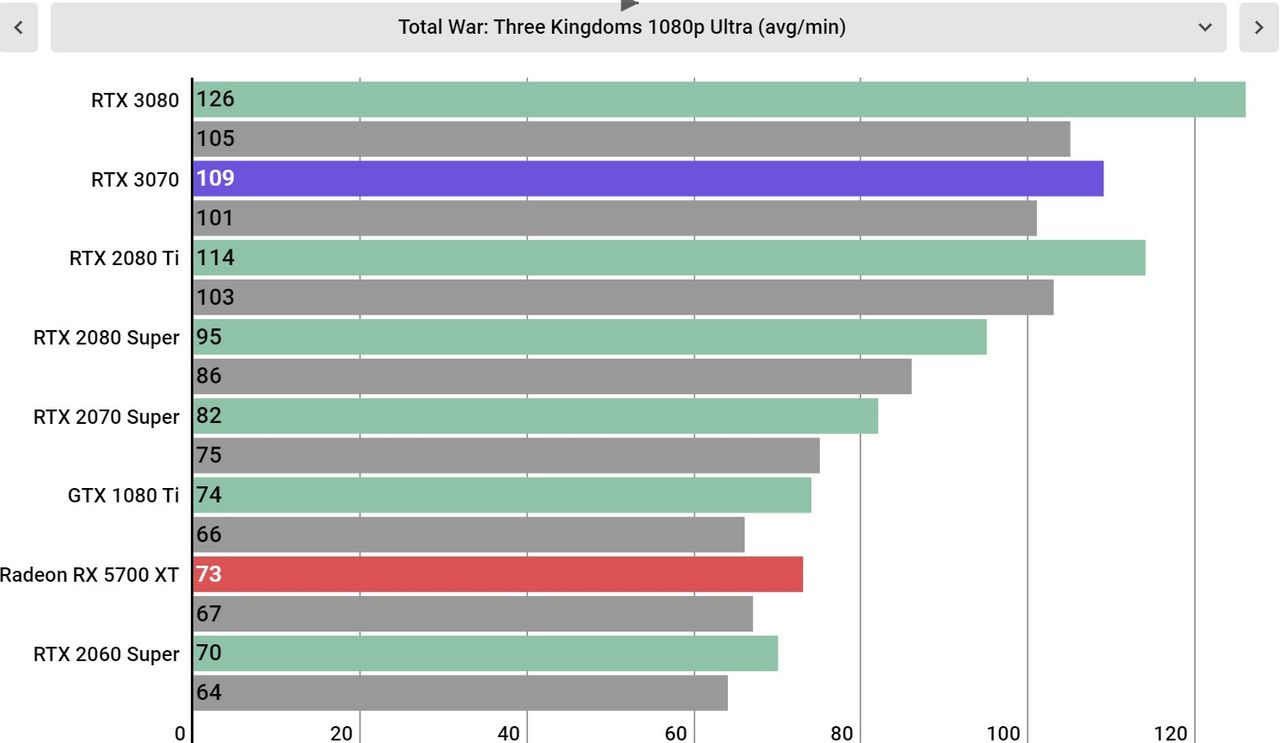

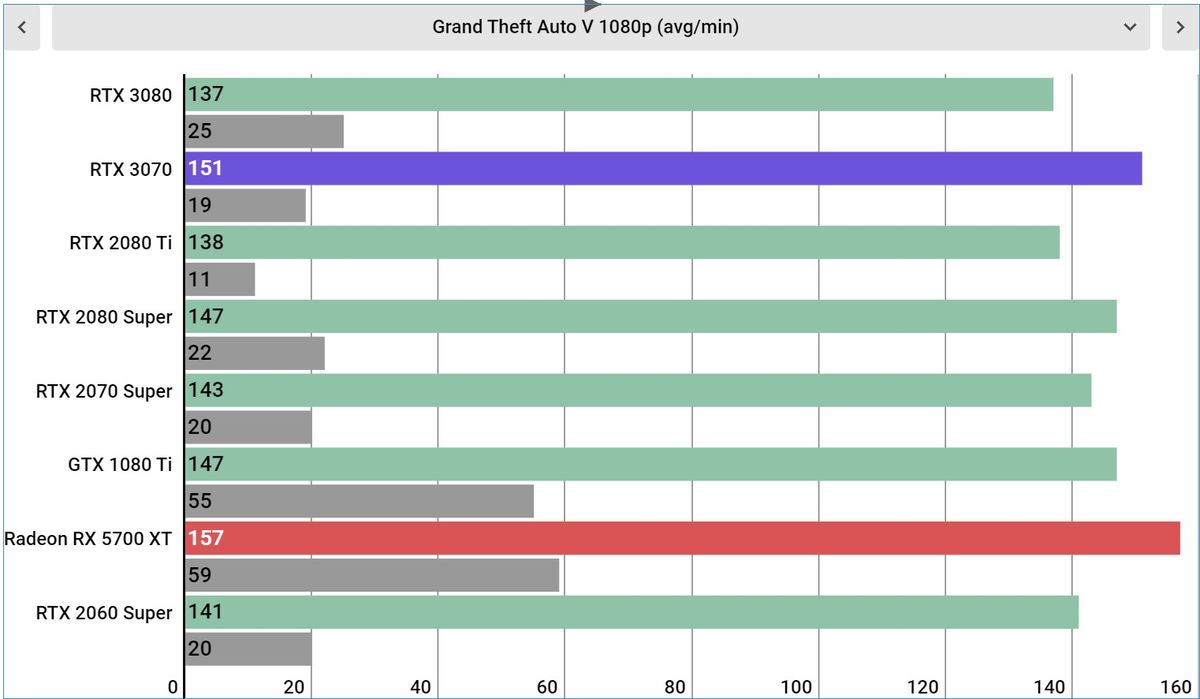

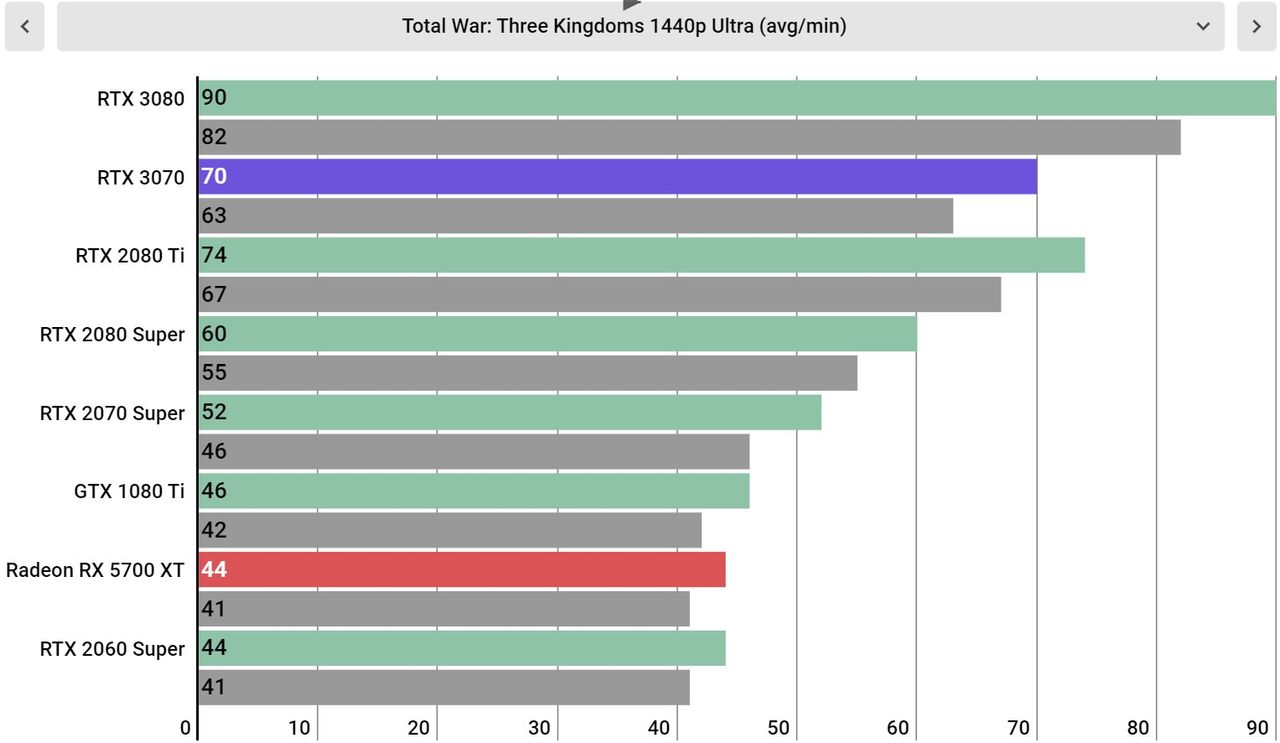

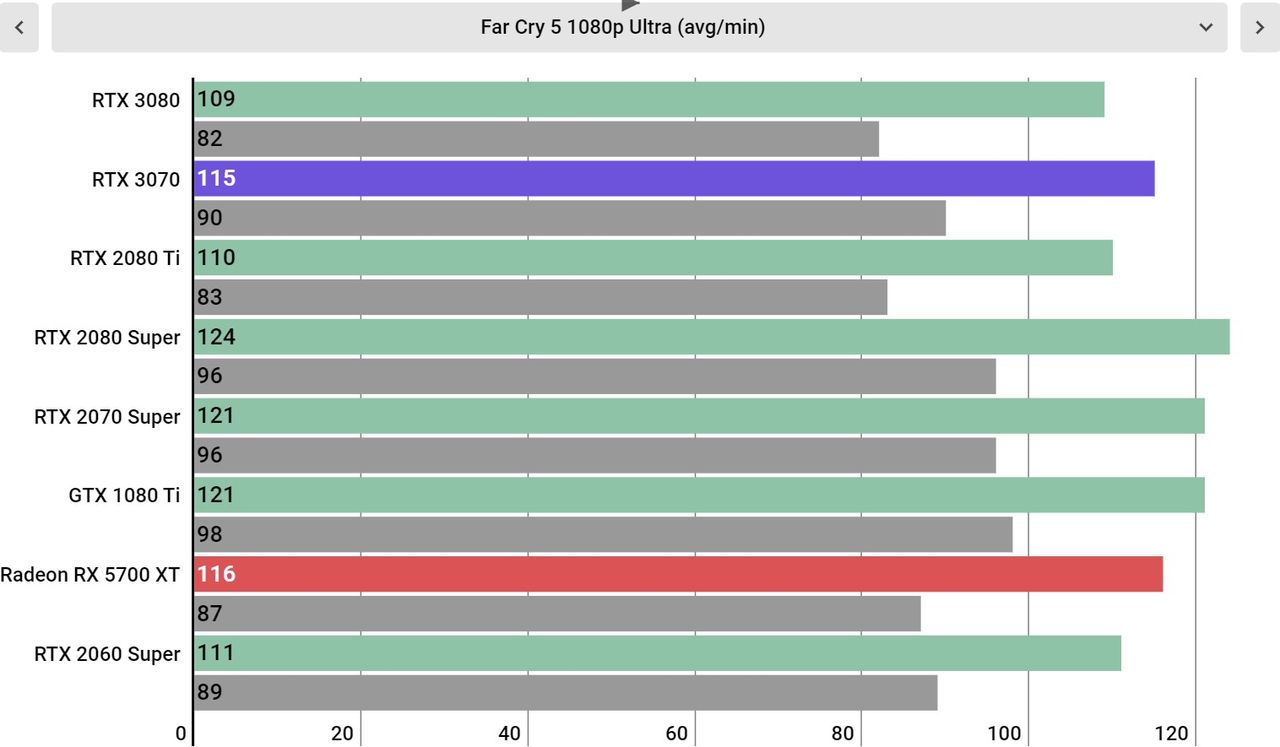

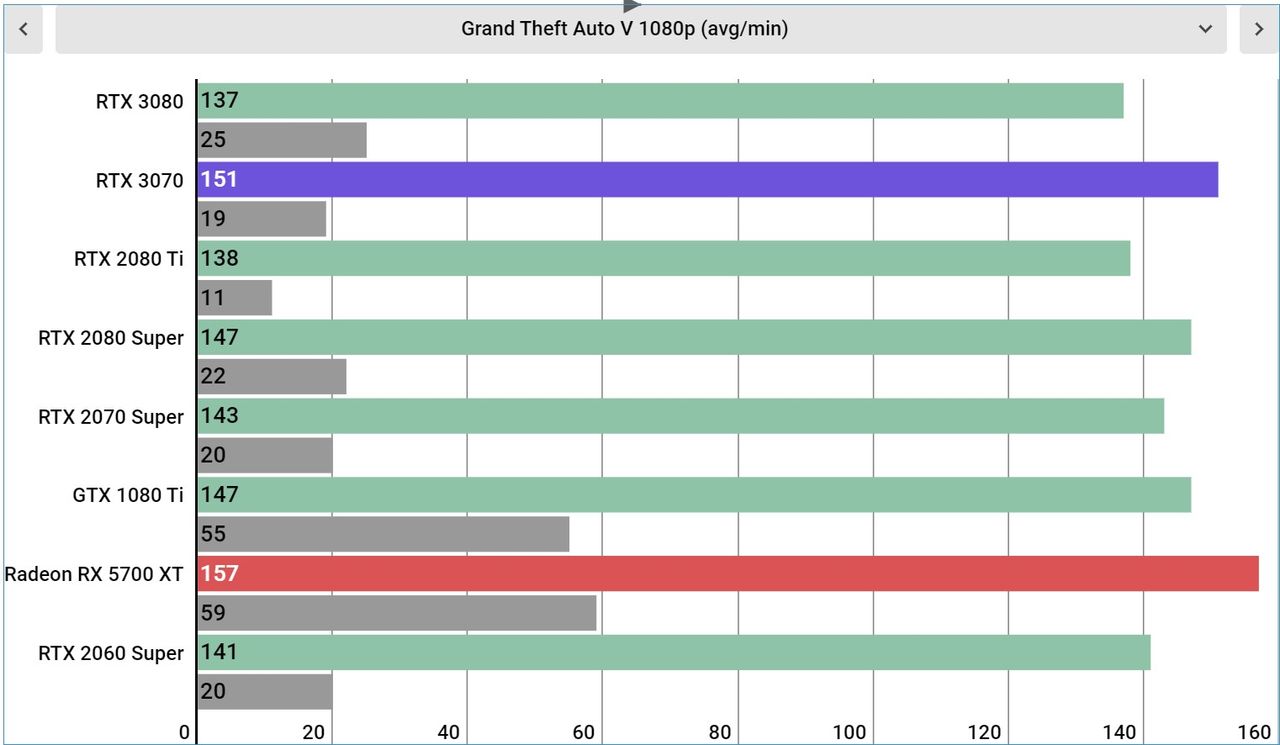

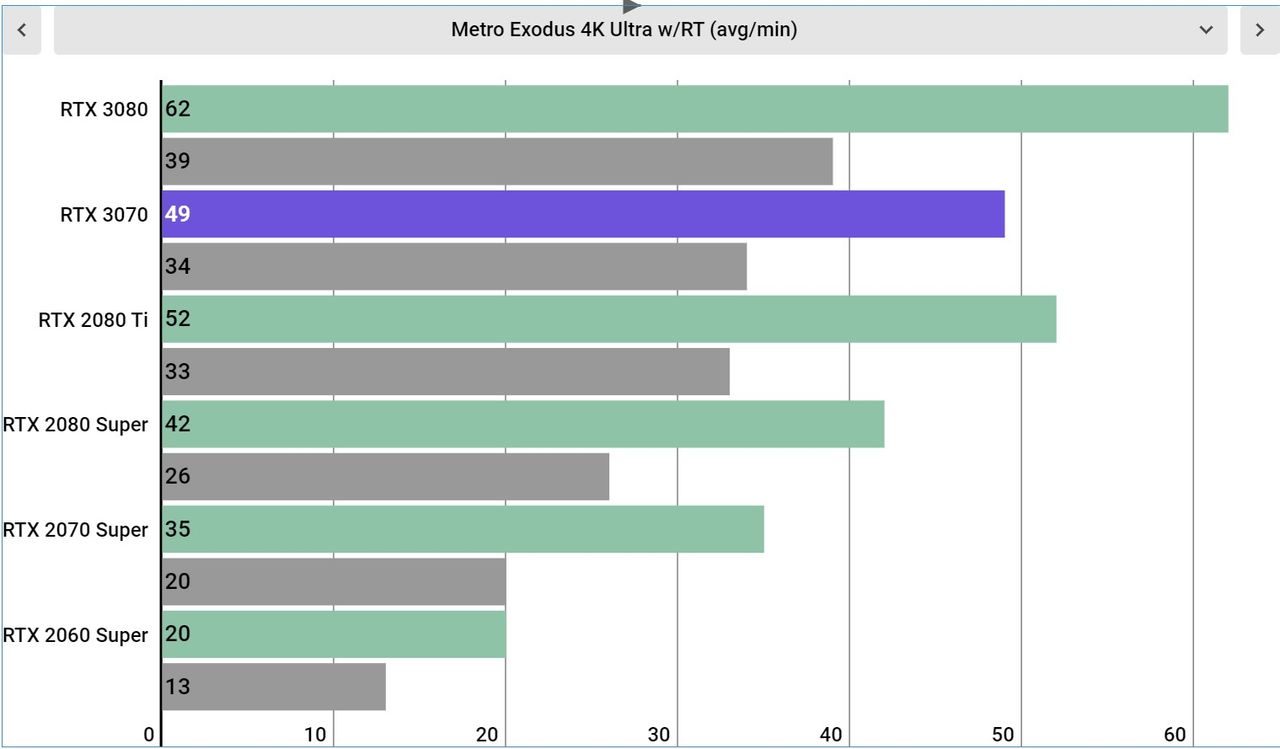

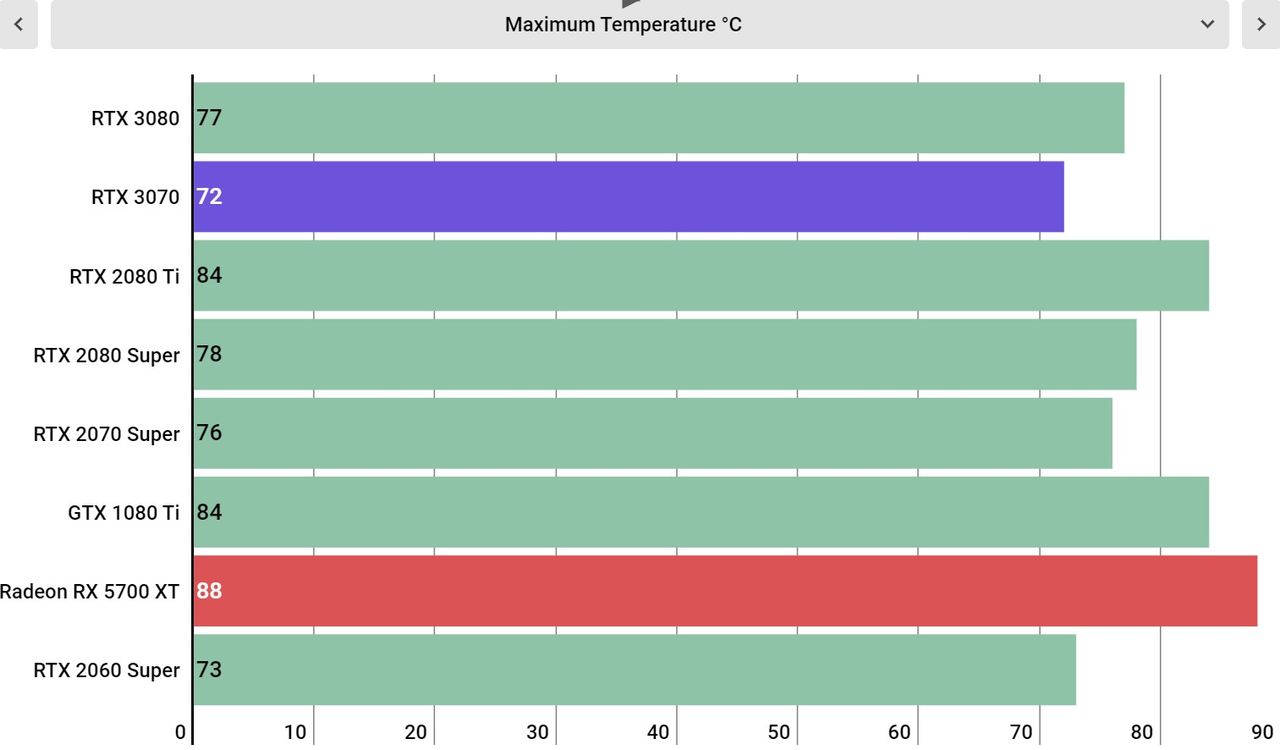

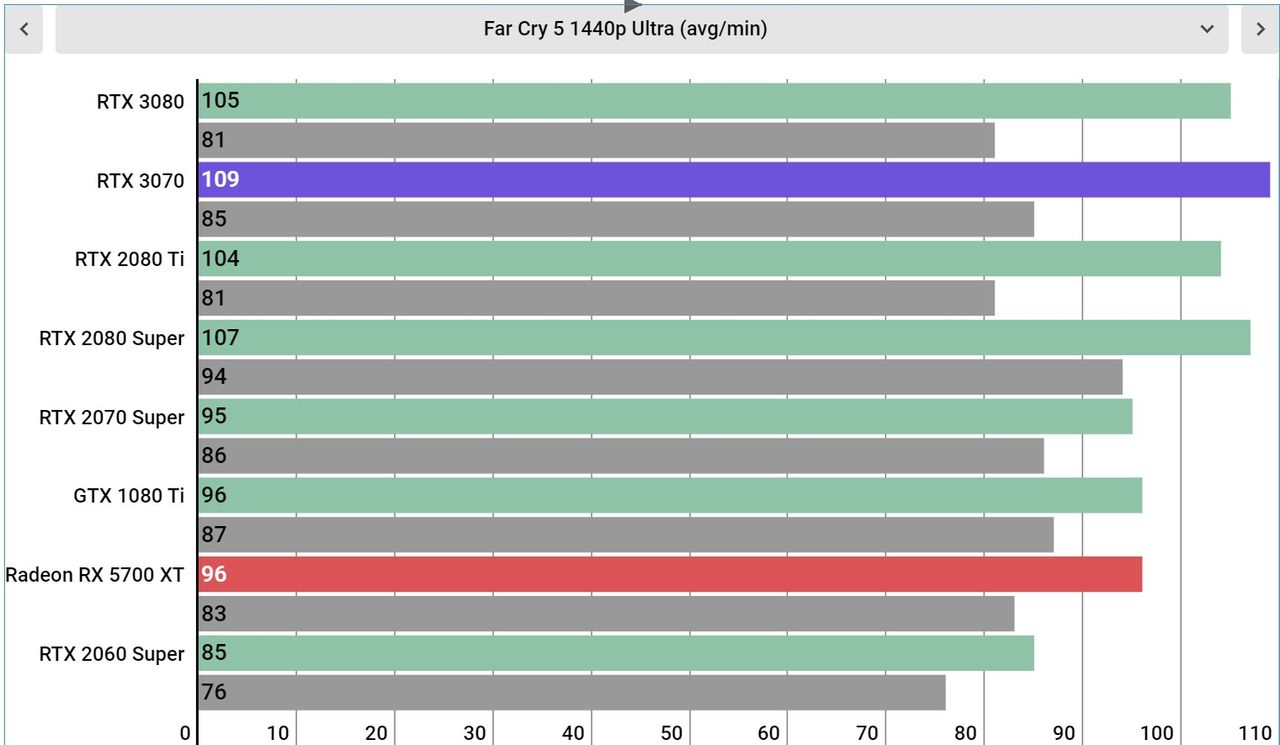

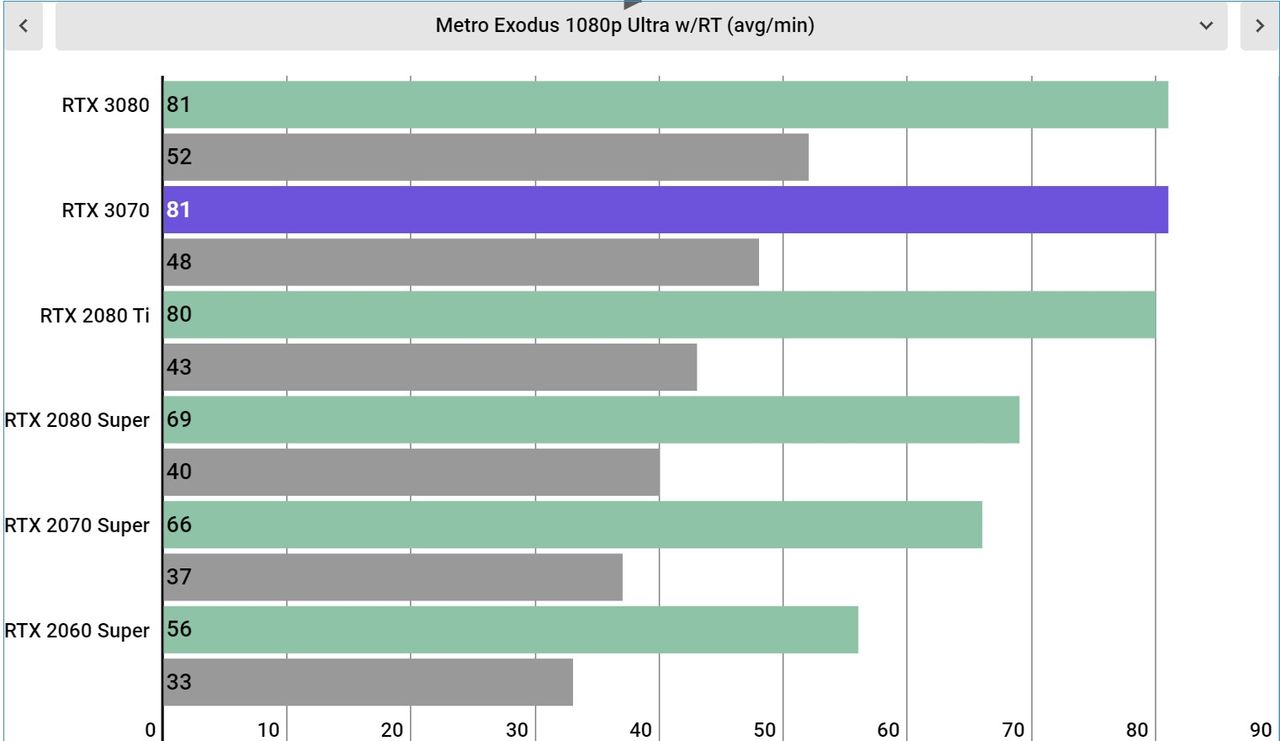

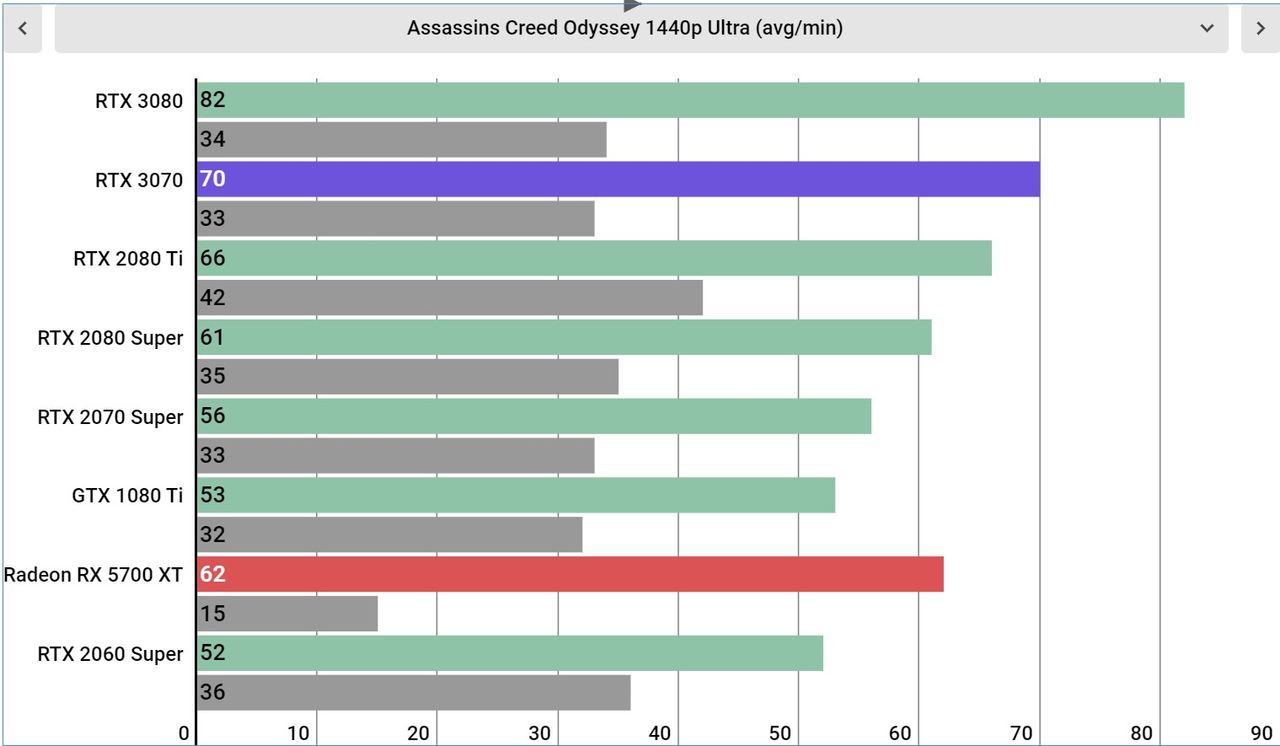

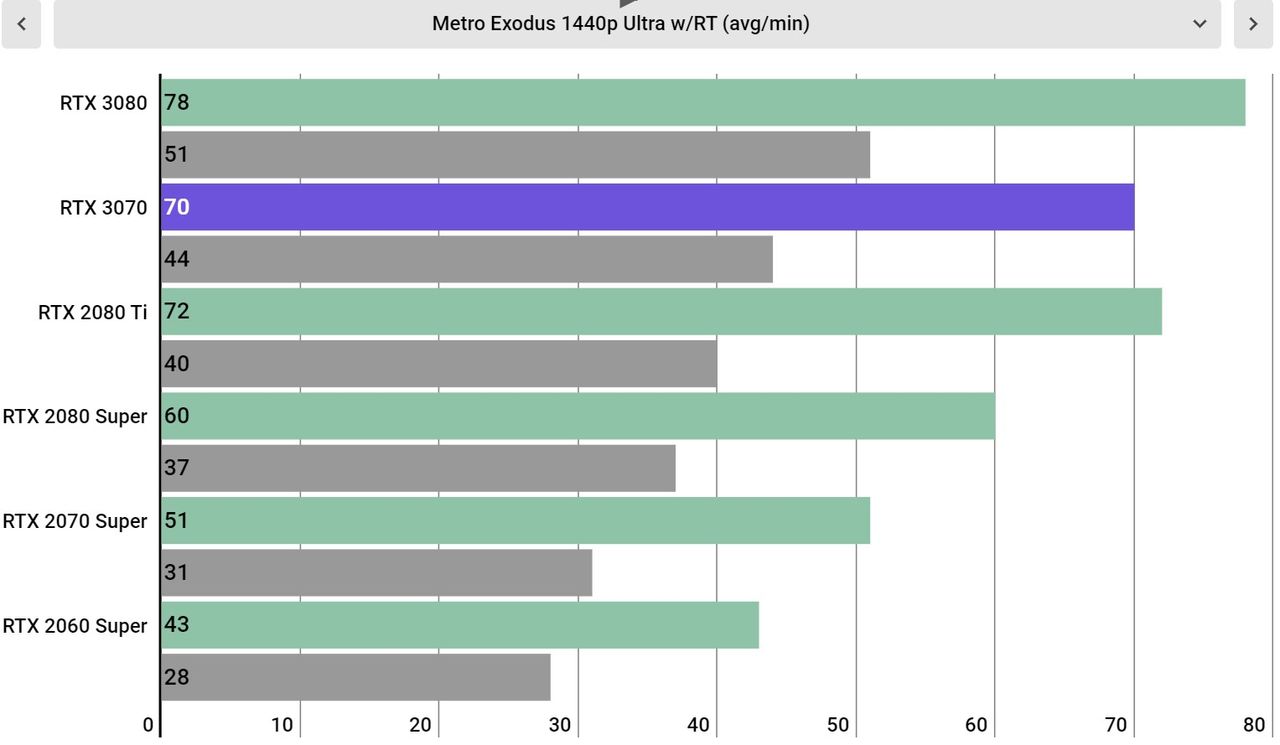

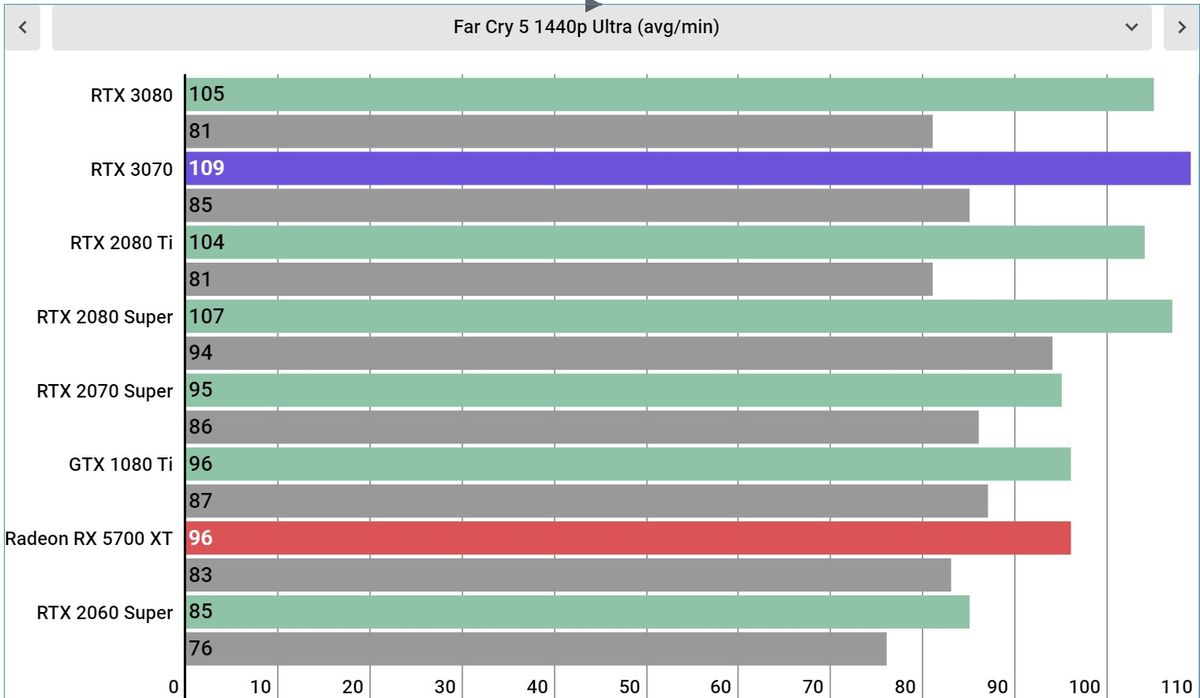

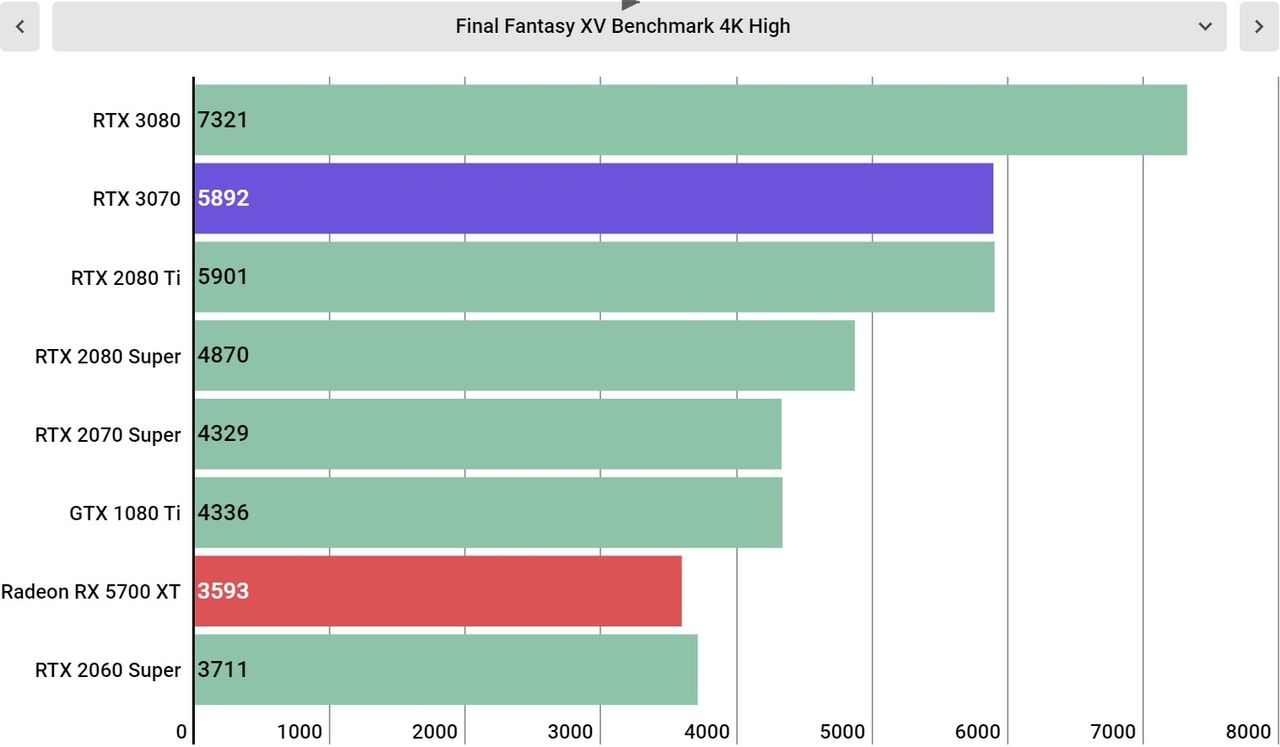

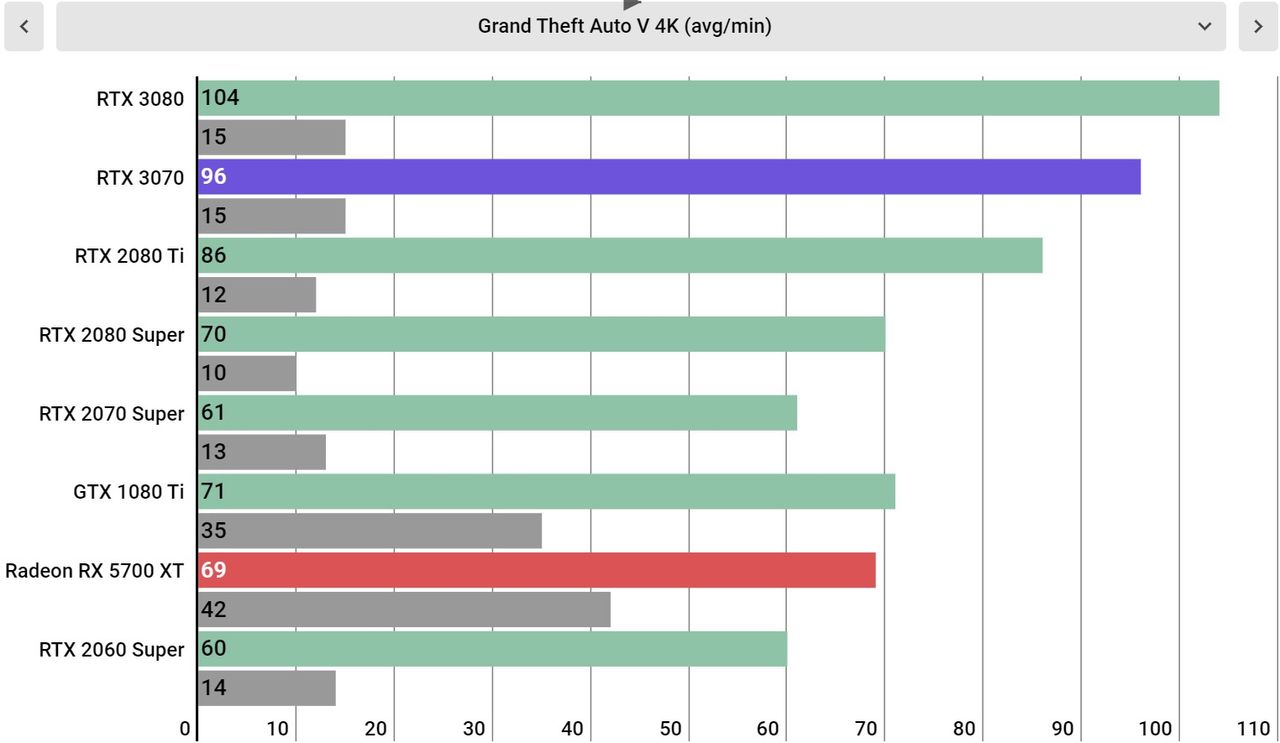

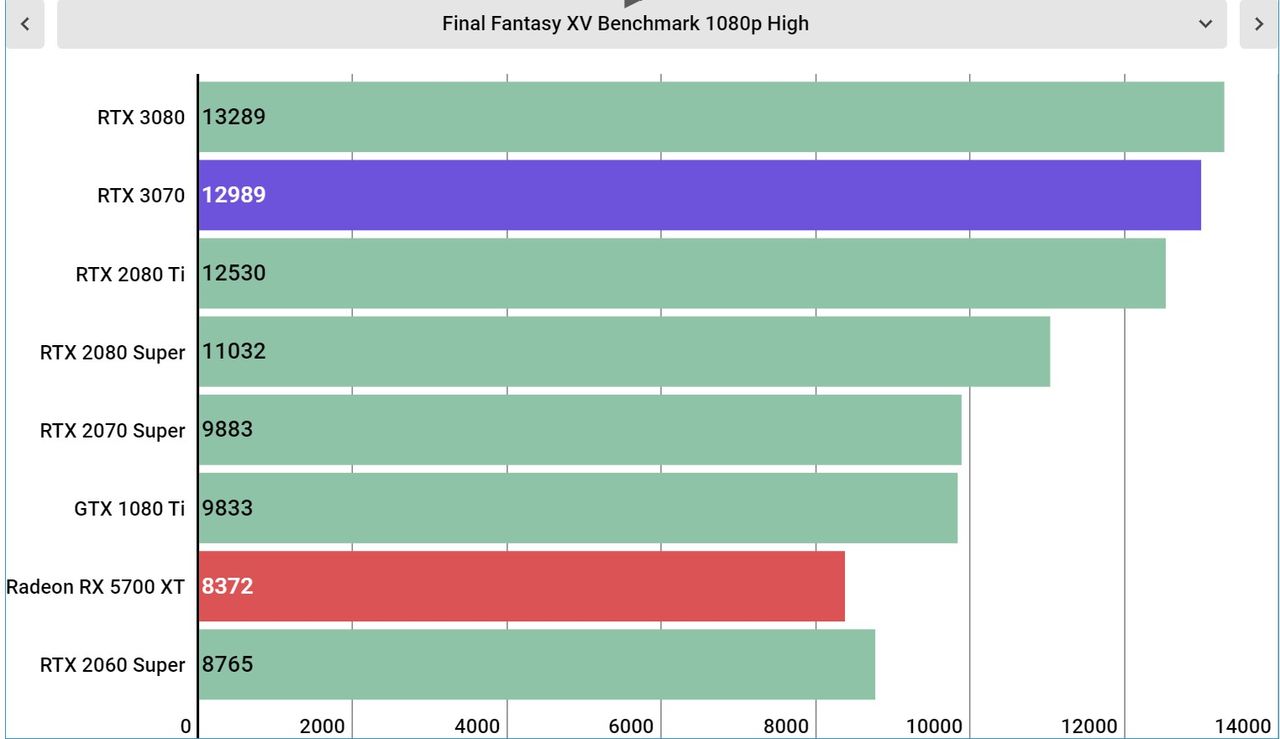

The Nvidia GeForce RTX 3070 is such an awesome piece of hardware precisely because it brings a flagship-level performance to the mid-to-high-end market. In test after test, the GeForce RTX 3070 provides extremely smooth gameplay and performance at 4K, and enables high-framerate performance at lower resolutions. If you want to take advantage of a 144Hz 1080p monitor without lowering quality settings, the RTX 3070 can do that.

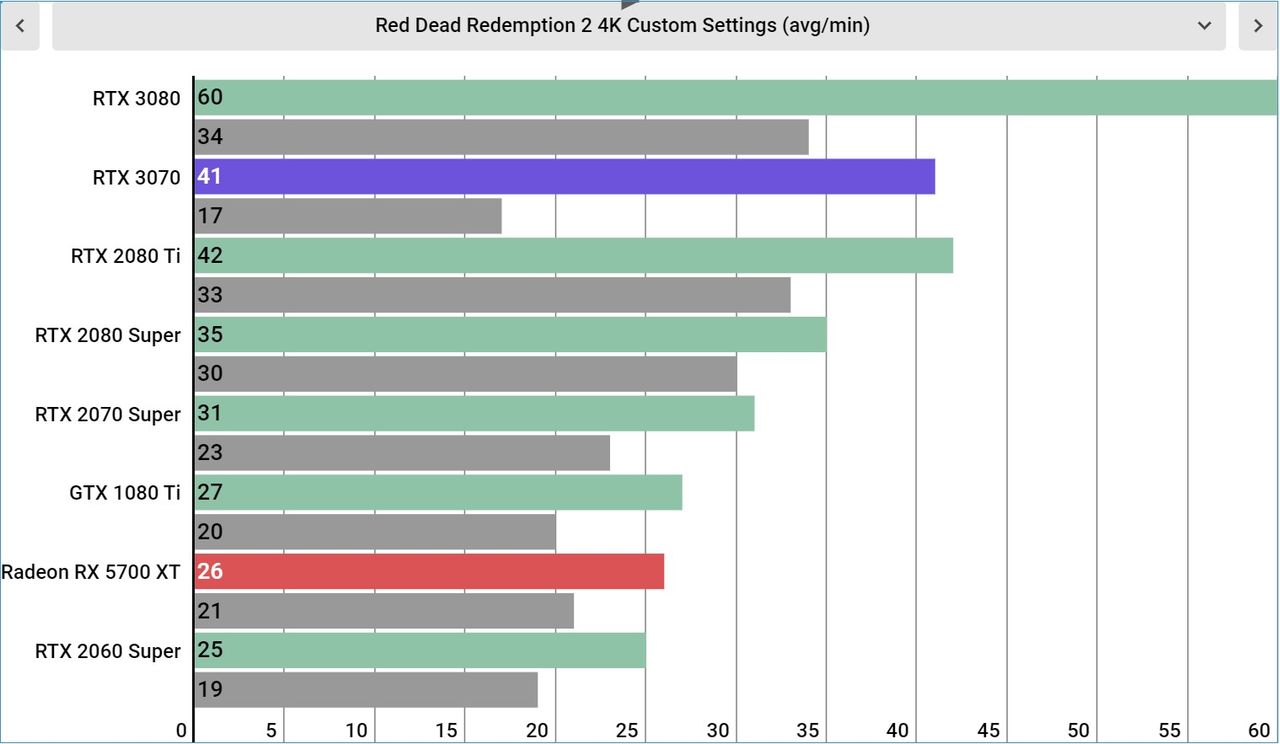

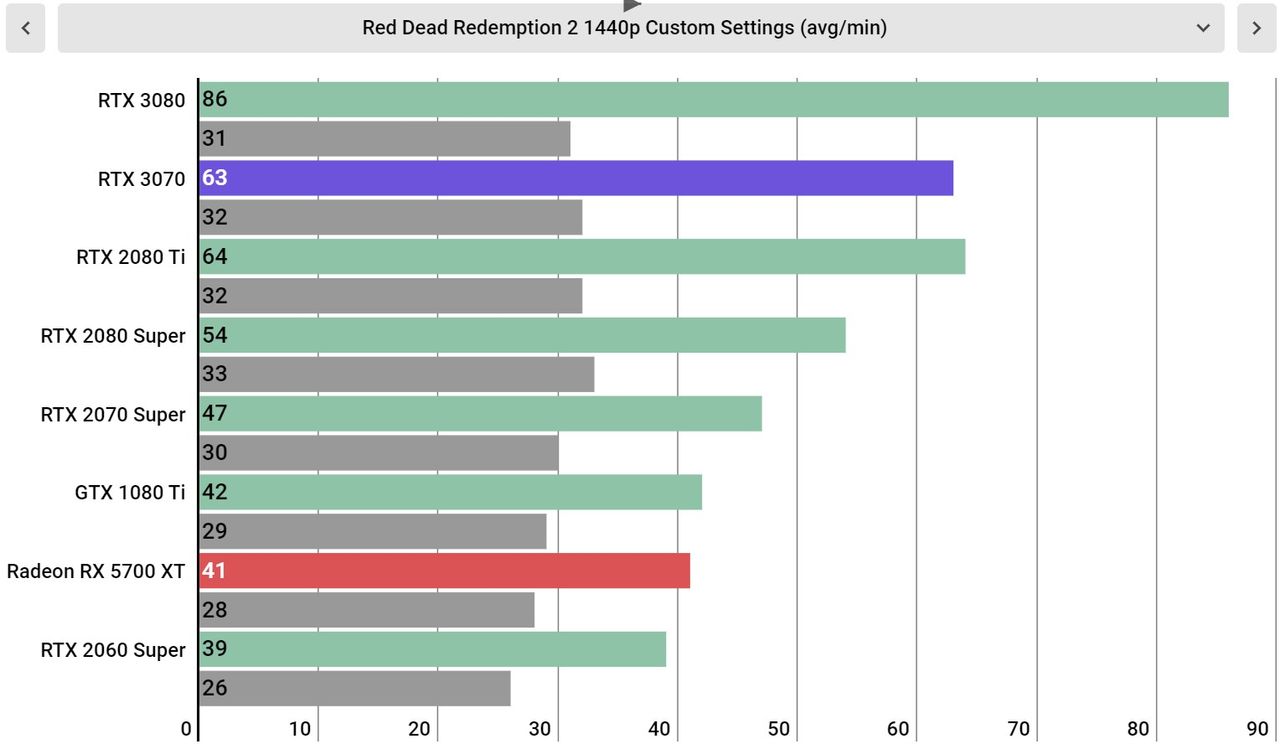

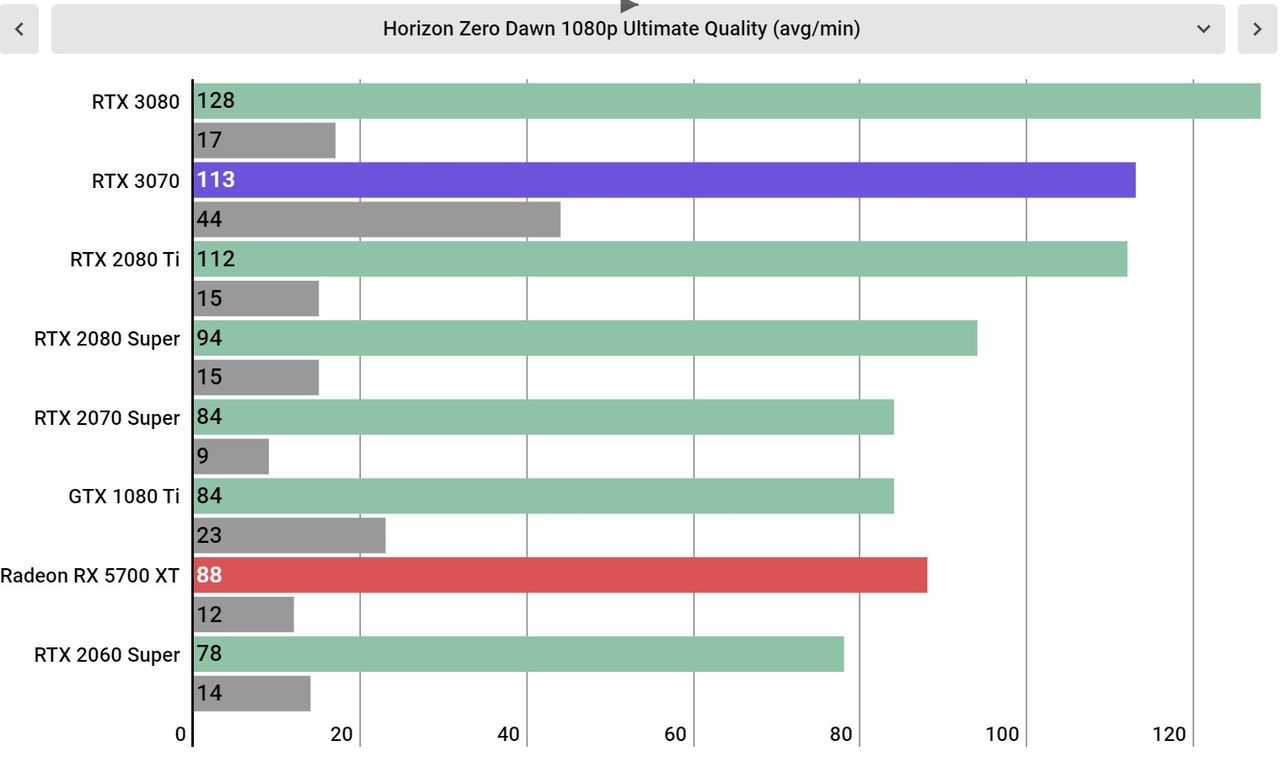

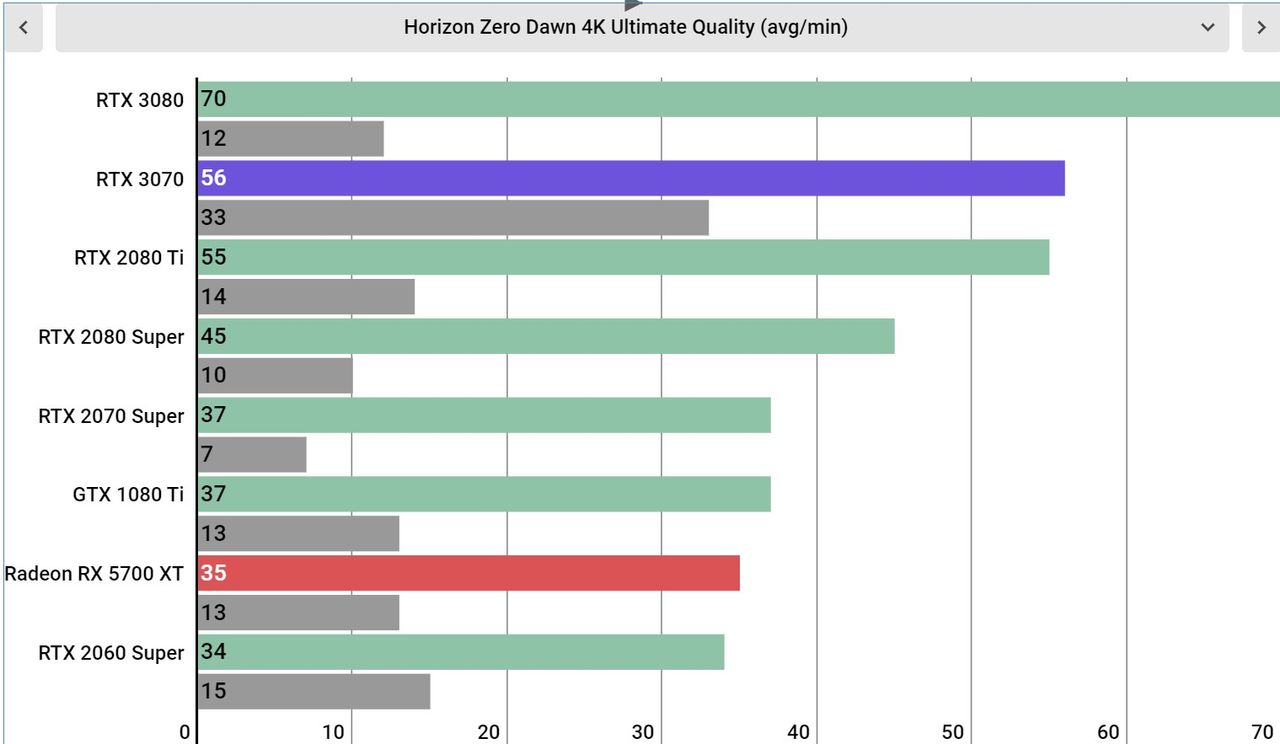

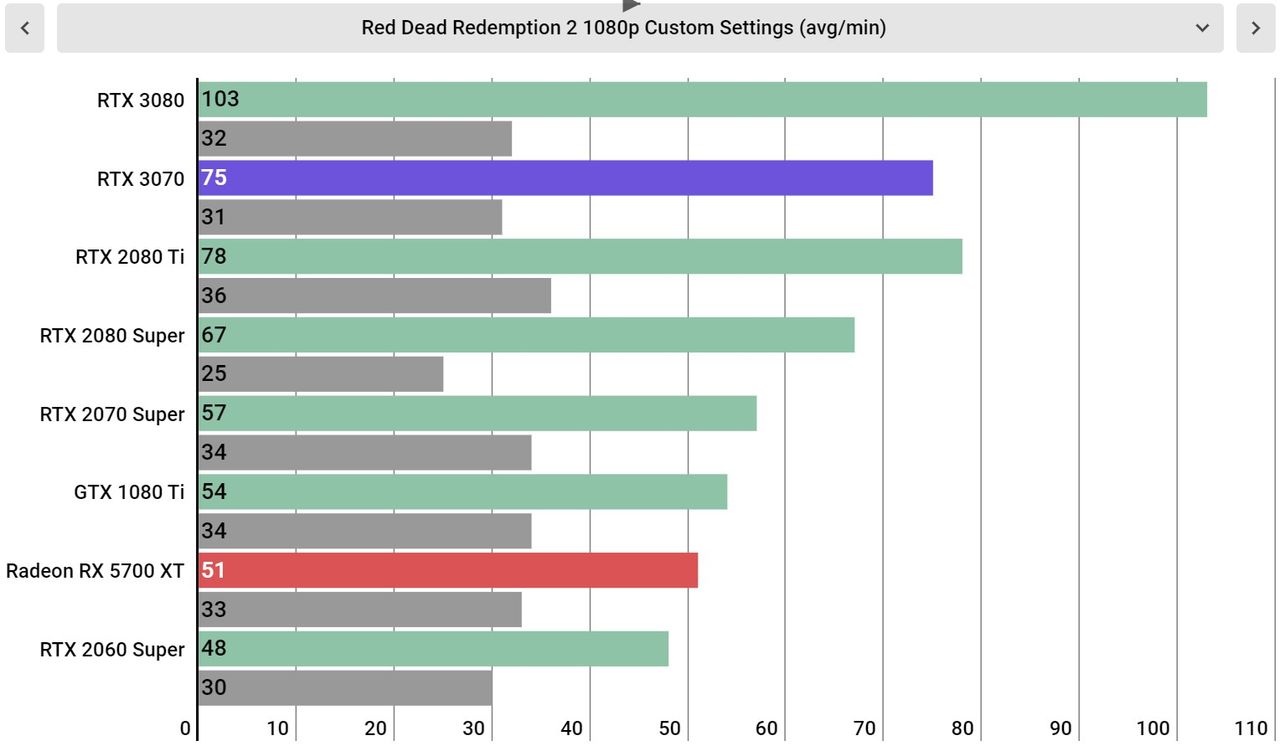

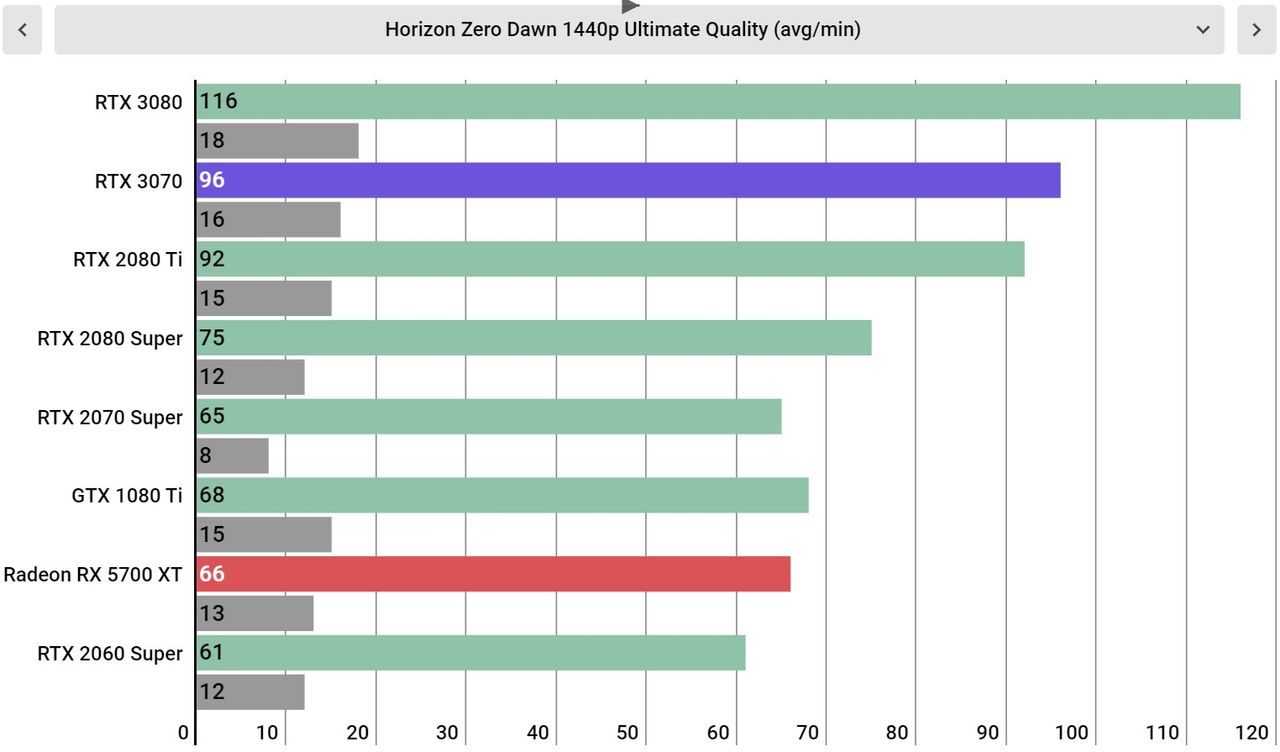

Even in hard-to-run titles like Horizon Zero Dawn and Red Dead Redemption 2, the RTX 3070 provides incredible performance, scoring 75 fps in the latter title at 1080p with everything but MSAA maxed out. Anyone familiar with how demanding Rockstar's Yee-Haw simulator is should recognize how impressive that is – given that the RTX 2070 Super gets just 57 fps in the same test.
But what's more impressive is that in Red Dead Redemption 2 – as it is across the rest of the lineup – the RTX 3070 is within margin of error of the RTX 2080 Ti across the testing suite. Just take a look at the 3DMark TimeSpy Extreme test – the RTX 3070 scores 6,990 to the RTX 2080 Ti's 6,986. That's practically the same score, which is mighty impressive on a graphics card with 3GB less VRAM and also consumes less power.

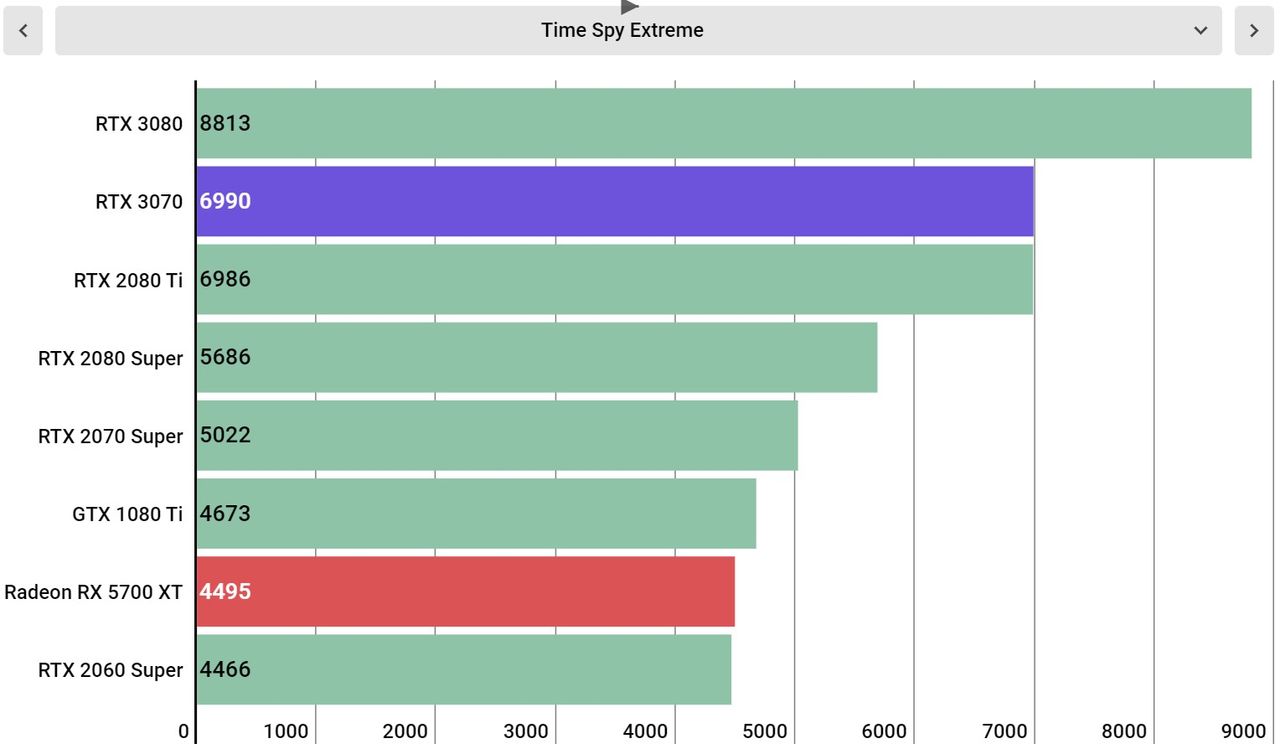

The RTX 2080 Ti and RTX 3070 trade blows throughout our lineup, and there's not a single test where the RTX 2080 Ti pulls significantly ahead. In fact, the biggest difference between the two graphics cards is in Grand Theft Auto V, where the RTX 3070 scores 96 fps to the 2080 Ti's 86 fps. That's just an 11% difference, and just in one title, but it does speak to the 3070's value.

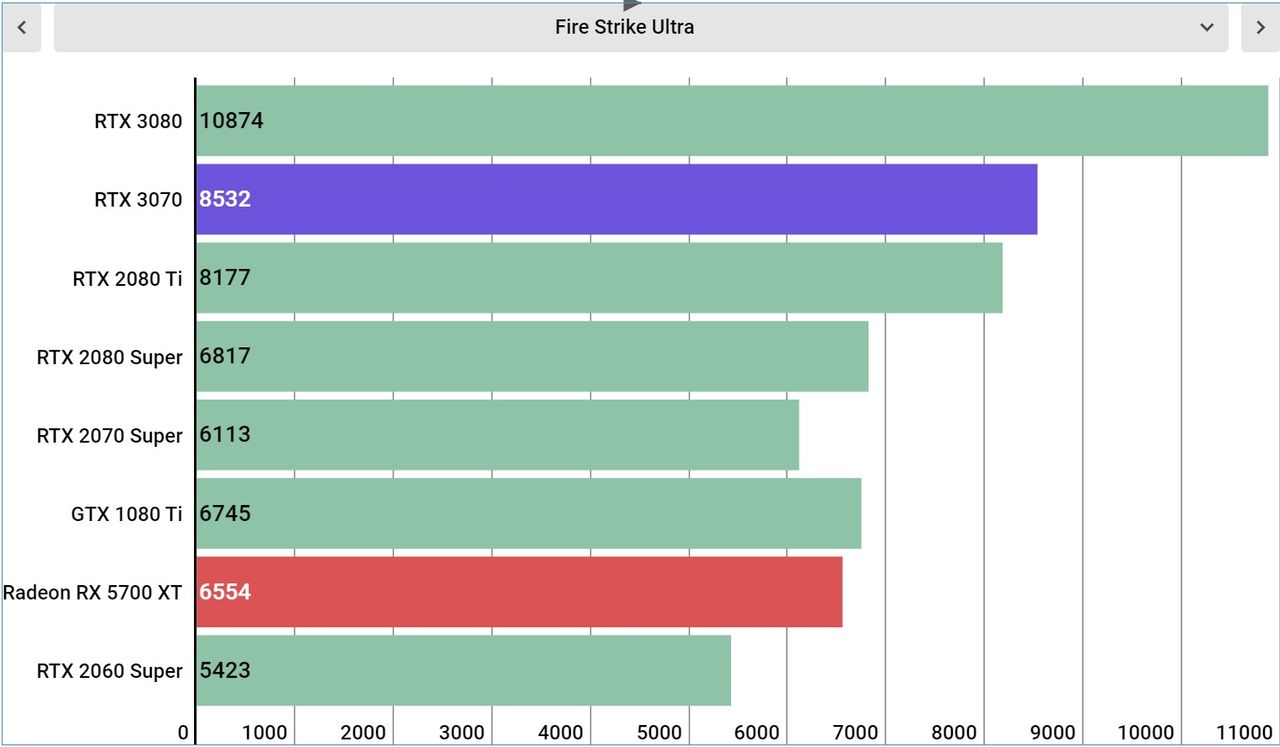

The closest competition that AMD has on the market is the RX 6700 XT, and the RX 6700 XT falls short in every synthetic benchmark we ran (between 0.8% slower in 3DMark's Firestrike Ultra to 26.5% slower in 3DMark's Port Royal) as well as falling short in terms of 4K frame rates on Total War: Warhammer III (29% slower) and nearly 9% slower in Dirt 5.
That's not even discussing the RTX 3070 absolutely destroying the RX 6700 XT in creative workflows like Blender and Adobe Premiere. It's not even close, with Blender rendering 61% to 67% on the RX 6700 XT than on the RTX 3070.
When compared against the RTX 3080, the RTX 3070 continues to shine. In most cases at 1080p, the graphics card is about 25-30% slower than its bigger sibling in most cases – but it's 40% less expensive.
That illustrates the biggest divide between the people that are going to go for the RTX 3080 and the RTX 3070. The Nvidia GeForce RTX 3070 is the graphics card for the people, delivering jaw-dropping 4K performance without breaking the bank. The only people that should be going to the RTX 3080 instead are the kind of people that have that extra money to burn and want bragging rights. And don't get us started on people that fork over the cash for the Nvidia GeForce RTX 3090 purely for gaming.
When you think about the graphics cards that have made the biggest impact over the last decade, it's never the Titans or the the xx80s. Graphics cards like the GeForce GTX 1060 6GB, the GTX 970 or the Radeon RX 580 have all become beloved little chunks of silicon because they delivered excellent performance at a price point that didn't scare people away.
The Nvidia GeForce RTX 3070 absolutely belongs in this pantheon, and we highly recommend it to anyone who has a little more money in their budget than what you'd spend on the RTX 3060 Ti.
Should you buy an Nvidia GeForce RTX 3070?
Buy it if...
You want to play games at 4K
The Nvidia GeForce RTX 3070 is easily capable of running pretty much any game at 4K without having to compromise on quality settings. Some games like Red Dead Redemption 2 might have you turn down some settings, though.
You want a good value graphics card
At $499 (£469, about AU$700), we would hesitate to call the RTX 3070 cheap, but compared to the more expensive flagship cards like the RTX 3080, it provides excellent performance for the money.
You have a smaller case
The Nvidia GeForce RTX 3070 Founders Edition doesn't pack the same gigantic cooler that the RTX 3080 does, which will make it a much easier fit into smaller PC cases.
Don't buy it if...
You don't want to deal with the 12-pin power connector
The RTX 3070 Founders Edition still has that obnoxious 12-pin power connector, even with its lower power requirements. If you don't want to wrestle with an adapter, opt for an aftermarket card.
Nvidia GeForce RTX 3060 Ti
If you're looking for the best graphics card by its pure value proposition, then look no further than the RTX 3060 Ti. Yes, the RTX 3070 scores better across every benchmark, but not by much, and in terms of performance-per-dollar/pound, the RTX 3060 Ti is the undisputed champion.
Read the full Nvidia GeForce RTX 3060 Ti review (opens in new tab)
AMD Radeon RX 6700 XT
If you're looking for a pure gaming graphics card, the RX 6700 XT also provides fantastic gaming performance at a slightly lower price, but it gets crushed in creative workloads, and it might be easier to find than an RTX 3070.
Read our full AMD Radeon RX 6700 XT review (opens in new tab)
Originally published in October 2020
