Zotac Magnus EN1080 10 Year Anniversary Edition review

Zotac’s shoebox-sized gaming monster

TODO alt text
Benchmarks

Here’s how the Zotac Magnus EN1080 performed in our suite of benchmark tests:

3DMark: Cloud Gate: 31,353; Sky Diver: 34,630; Fire Strike: 16,148
Cinebench CPU: 814 points; Graphics: 143.23 fps
GeekBench: 3,827 (single-core); 14,915 (multi-core)
The Division (1080p, Ultra): 94.7 fps; (1080p, Low): 223 fps
GTA V (1080p, Ultra): 66 fps; (1080p, Low): 177 fps

Logically, the centerpiece of this computer should be the Intel Core i7-6700 (quad-core, 3.4 GHz, up to 4.0 GHz) processor. This is the Skylake 6th-gen and not Kaby Lake 7th-gen silicon, but it would be wrong to suggest this is anything but a powerful processor.

The associated B150 chipset is also not the Z170 many might have expected in such a high-end solution.

Zotac clearly made a value judgement about adding PCIe lanes that wouldn’t be utilised. The downside of the B150 chipset in this context is that it limits the DDR4 memory to 2133Hz irrespective of the speeds offered on the installed modules.

Memory tweakers take note; the current EN1080 BIOS offers no control over RAM clocks or timings whatsoever.

Overall, the effective CPU and chipset combination is rightly upstaged by the GPU mounted directly on the mainboard alongside the CPU. A full Nvidia GTX 1080 with 8GB of its own GDDR5 memory and an eye-watering 7.2 billion transistors.

Throw whatever tasks you like at it, this GPU is monstrous and the EN1080’s version isn’t kneecapped or throttled in any way from the desktop card counterpart.

4K, multi-screen or VR; the GTX 1080 can chew these challenges up and rapidly spit them out like flavorless gum.

The dual challenges of deploying a desktop Core-i7 and one of the best single video cards in something the size of shoebox are keeping it cool and supplied with enough watts.

Zotac’s approach was to build the Magnus EN1080 in layers, with the coolest parts at the bottom and warmest, sensibly, at the top.

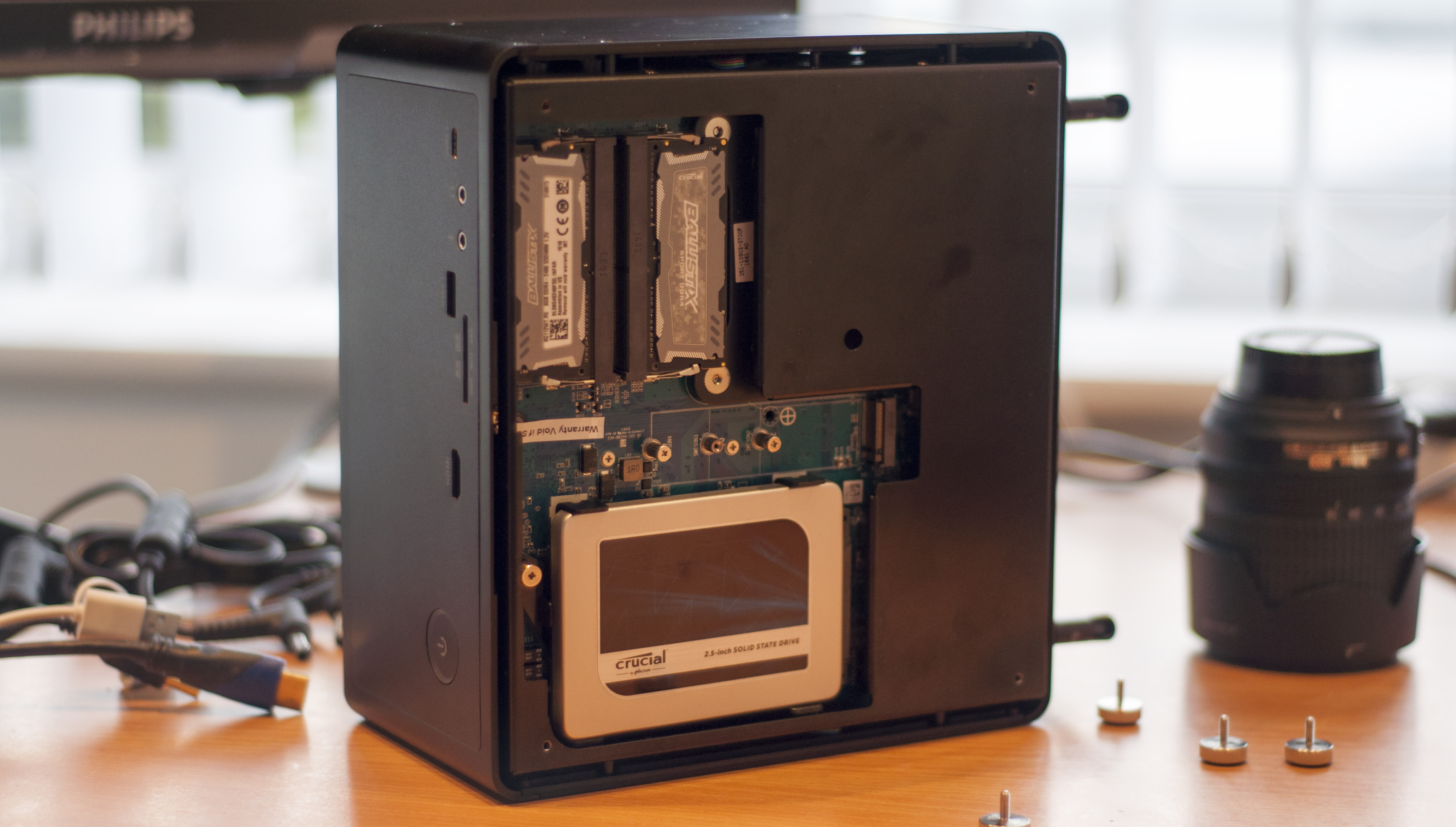

The drives and memory are on the underside of the motherboard, accessible via a removable panel held in place by four screw threaded feet.

Inside there is room for a single 2.5” SATA mechanism, one M2 PCIe NVMe storage module and dual DDR4 SODIMMs slots for a maximum of 32GB of RAM. The Zotac EN1080 is sold as a 'barebones' system, so you need to buy a hard drive and RAM separately and install them yourself. While this gives you some flexibility in configuring the EN1080 for your personal needs, it does mean there's extra costs involved that you will need to take into consideration.

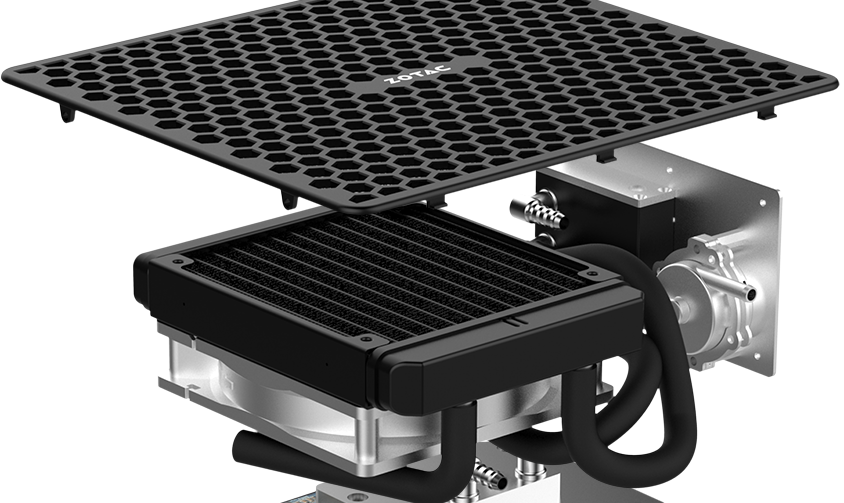

On the reverse side of the motherboard are the CPU and GPU, each with water cooling blocks mounted over them. The thermal pathway is completed with a fan and radiator assembly above, venting through the honeycomb grill.

How well this works in practice is probably the EN1080’s best trick, because not even during the toughest benchmarks did the fans make even more than the slightest hum.

Unfortunately, compared with the cooling solution the power delivery problem isn’t resolved nearly as smartly.

Instead of building an external power block capable of providing all the watts needed, Zotac just included two 180W external supplies.

This decision contributes to a mess of cabling behind the unit that isn’t easy to effectively organise or hide.

I’d accept that having a giant brick PSU like the original Xbox 360 design isn’t ideal, but at least that option would have only one power cable to contend with.

We liked

The Zotac EN1080 is an incredibly powerful gaming machine, packed with some very capable hardware (especially the GTX 1080 graphics card), which means you can play the latest games without any trouble.

The fact that so much power is crammed into such a small body is also remarkable, especially considering how quietly it performs.

We didn't like

The Zotac EN1080 is a very expensive bit of kit, and while it looks like a gaming console, and performs much better than one, it's still almost five times as expensive as an Xbox One or PS4.

The fact that this price tag doesn't include the additional components, such as a hard drive, operating system and RAM, that are needed for the machine to work, is also a negative.

Final verdict

Often systems described as gaming platforms fail to live up to that billing under scrutiny. The Magnus EN1080 isn’t one of those.

In the selection of current PC titles tested, almost irrespective of what settings were applied, framerates in excess of 100fps are the norm, even at resolutions above 1080p.

Its primary disadvantage over a conventional desktop platform is that once the hardware in it is superseded, the EN1080 can’t be updated to the next level.

For those that only keep their systems for a few years, this won’t be a critical problem. But buyers must accept that with the exception of memory and storage, the EN1080 is effectively a technological dead end from the outset.

Technically, the CPU is LGA 1151 socketed. However, it’s not designed to be a user modification and would require entirely dismantling the EN1080, invalidating the warranty in doing so.

It might be physically possible to put a Core i7-7700K (Kaby Lake) CPU inside, though as that chip has a TDP of 91 watts, not 65 watts of the i7-6700 you might run into power and heat issues doing so.

All these are useful points indeed, but the giant elephant in this room are the mammoth costs involved in owning such a remarkable piece of PC technology.

A whopping £1999.99 ($2000, around AU$2600) for a barebones system that needs RAM, storage and an operating system isn’t an impulse purchase for many people.

However, factoring out the processor and GPU it looks marginally less outrageous, especially if you need both power and transportability in a single system.

It’s difficult to argue with the performance as it’s simply stellar by today’s standards. But equally, at this price point we should quite reasonably expect something amazing.

This is undoubtedly one of the most powerful Small Form Factor systems available, and an absolute joy for those lucky enough to have one.
